7955134
Official DistributorBy Rittal
SKU
RIT7955134
Weight
6.822 kg
This product is Not Cancellable/Not Returnable

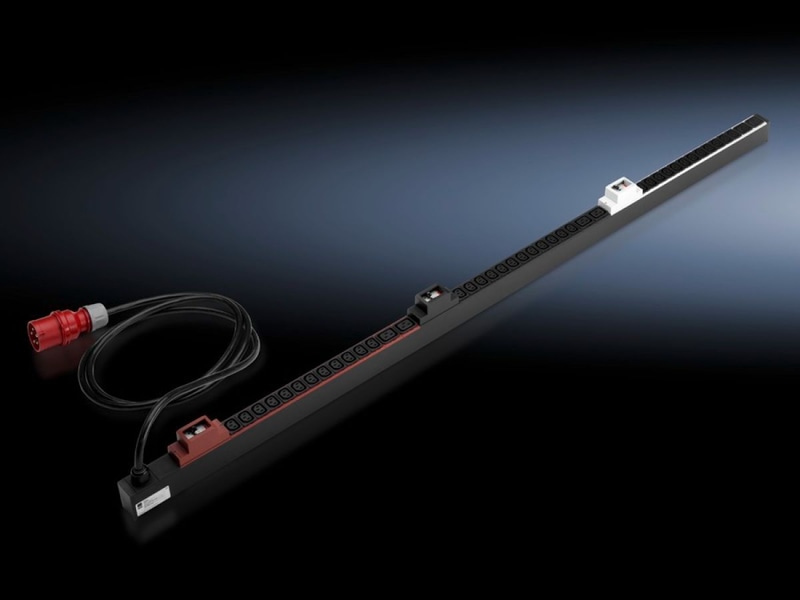

DK PDU international, basic version, Compact basic power distributor, WLD: 44x1710x62 mm, 36xC13, 6xC19, black, CEE, 3~, 32 A
Technical Specifications
Dimensions
| Width | 44 mm |
| Depth | 62 mm |
| Length | 1,710 mm |
Infeeds
| Qty. | 1 |
| Phases per infeed | 3~ |
| Version | PDU Basic |
| Material | Aluminum section, black anodized |
| Number of sockets and type | 36 x C13 / 6 x C19 |
| Outlets | 36 x Non-Heating Apparatus Socket C13 6 x Non-Heating Apparatus Socket C19 |
| Rated current (max.) | 32 A |
| Length of connection cable | 3 m |
| Type of connection (electrical) | CEE |
| Number RJ45 ports for sensor units max | 6 |
| Guidelines | EMC Directive 2014/30/EU |
| Standards | EN 60950-1 |
| Operating temperature range | 0 °C...45 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -25 °C...70 °C |
| Weight/packaging unit | 6.822 kg |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
Why Proax for Rittal 7955134?
Proax is an authorized distributor of Rittal 7955134 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
