7859315
Official DistributorBy Rittal
SKU
RIT7859315
Weight
1.632 kg
This product is Not Cancellable/Not Returnable

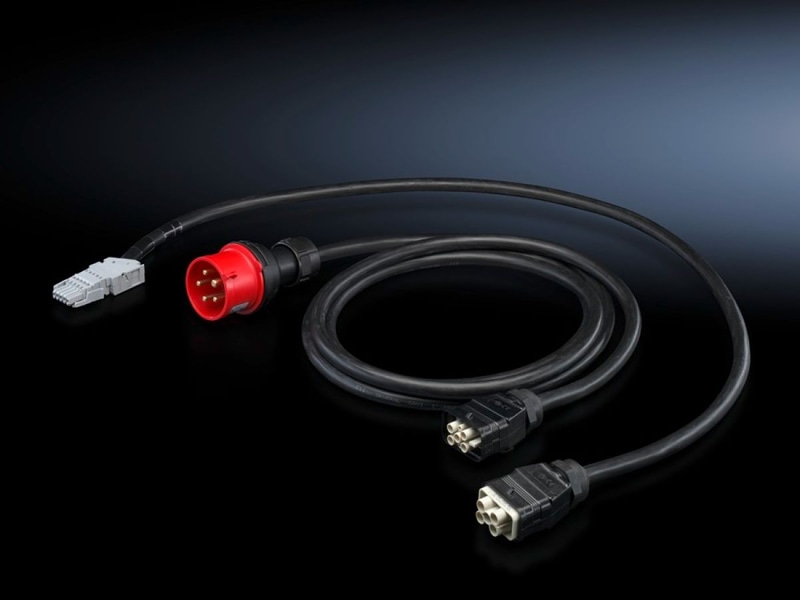

DK Connection cable, L: 2 m, 16 A, H07RN-F, Input/output: CEE, For PSM
Supply includes
Connection cable (set) comprising input & output cables for a circuit of the PSM-MID module
If both circuits of the MID module are used, this article must be ordered twice.
The connection cable set is comprised of 2 cables per pack
Technical Specifications
| Number of wires | 5 |
| Connector (type) | CEE 3L+N+PE 6h |
| Rated current (max.) | 16 A |
| Connection cable (type) | H07RN-F |
| Operating temperature range | -25 °C...55 °C |
| Outlets | CEE 3L+N+PE 6h |
| Relative humidity (non-condensing) | 20 %...90 % |
| Storage temperature range | -25 °C...70 °C |
| Input cable connection (type/length) | 2 m |
| Output cable connection (type/length) | 2 m |
| Weight/packaging unit | 1.632 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177677616 |
| ETIM 7.0 | EC001576 |
| ECLASS 8.0 | 27060402 |
Why Proax for Rittal 7859315?
Proax is an authorized distributor of Rittal 7859315 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
