7240301
Official DistributorBy Rittal
SKU
RIT7240301
Weight
1.08 kg

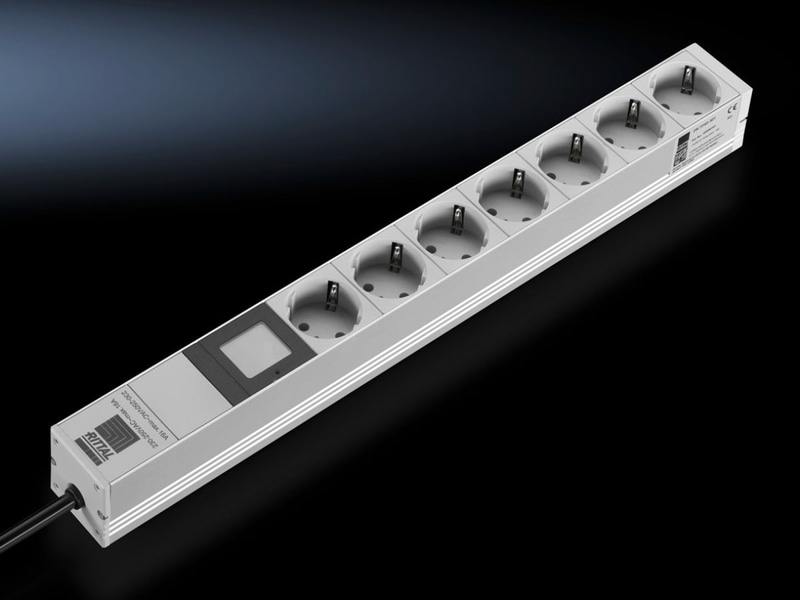

DK Socket strip, CEE 7/3 (type F), 7-way, 230 V (AC), 16 A, LHD: 482,6x45x50 mm, with display
Supply includes
Socket strip
2 mounting bracket
Fasteners
Operating manual
With 3 m connection cable (wire end ferrules)
Technical Specifications
Dimensions
| Height | 45 mm |
| Depth | 50 mm |
| Length | 482.6 mm |
Material
| Socket inserts | Polycarbonate |
| Benefits | Measurement accuracy of ± 5% |
| Function principle | Measurement of current, voltage, frequency, active power, active energy and phase shift |
| Version | Mit Display |
| Outlets | 7 x D, ground pin (type F, CEE 7/3) |
| Length of connection cable | 3 m |
| Connection cable (type) | H05VV-F3G1.5 with wire end ferrules |
| Mounting dimensions | 464.1 mm |
| Rated operating voltage | 230 V AC, 50 Hz |
| Rated voltage | 230 V AC, 50 Hz |
| Rated current (max.) | 16 A |
| Installation options | Components with a 25 mm pitch pattern |
| Socket color | RAL 7035 |
| Operating temperature range | 5 °C...45 °C |
| Relative humidity (non-condensing) | 10 %...80 % |
| Storage temperature range | -15 °C...60 °C |
| Weight/packaging unit | 1.08 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177709416 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
