7063752
Official DistributorBy Rittal
SKU
RIT7063752
Weight
2.958 kg

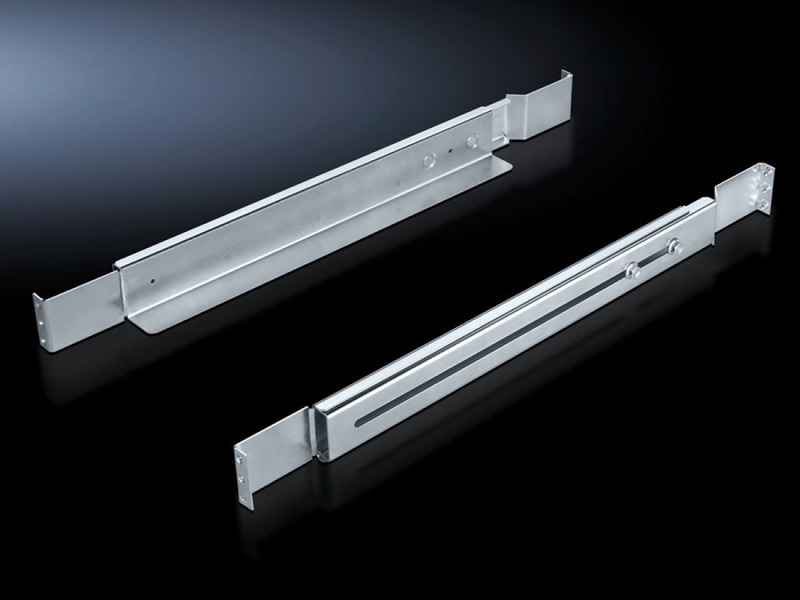

DK Slide rail, Support surface Width: 30 mm, 1 U, depth-variable, 20 kg, static, distance between levels: 550-750 mm, For TS IT, TE
Supply includes
Assembly components
Technical Specifications
Contact surface
| Width | 30 mm |
| Benefits | No loss of U |
| Applications | For assembly on the front mounting level |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Installation options | For attaching between the front and rear 19" mounting level |
| Load Capacity | 20 kg static load |
| Note | Effective contact surface 30 mm per side |
| Distance between levels | 550 ‐ 750 mm |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 2.958 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177625457 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 7063752?
Proax is an authorized distributor of Rittal 7063752 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
