7030230
Official DistributorBy Rittal
SKU
RIT7030230
Weight
0.3 kg
This product is Not Cancellable/Not Returnable

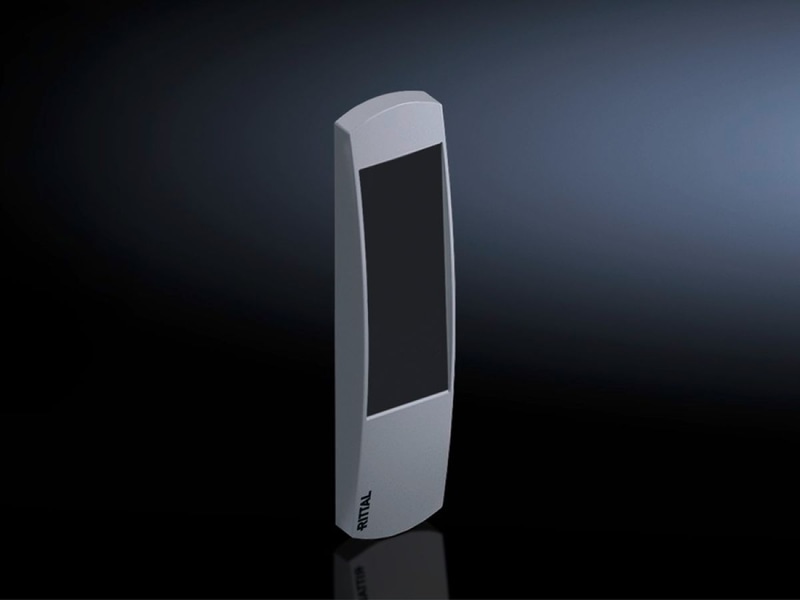

DK CMC III Transponder reader, For release of rack or room doors, For connection to CMC III Processing Unit via CMC III CAN bus access, Status display via integral LED, Authentication via transponder card
Supply includes
Transponder reader
Connection cable
Operating manual
Compensating panel for TS 8 glazed door design
Assembly components
3 transponder cards
Technical Specifications
Color
| Housing | RAL 7035 |
| Front | RAL 9005 |
Dimensions
| Width | 50 mm |
| Height | 190 mm |
| Depth | 25 mm |
| Version | Transponder reader |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | For mounting on enclosure doors or next to a room door. |
| Function principle | The door is released after authentication by the user. |
| Material | Plastic |
| Length of connection cable | 3 m |
| Numbers of subscribers of IoT Interface (max.) | 16 |
| Number of participants PU compact (max.) | 2 |
| Number of participants PU (max.) | 16 |
| Note | Max. 5 consumers per PU for power supply via PoE |
| Transponder tags | ISO 15693 - Mifare 1K |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.3 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177659582 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
