6446030
Official DistributorBy Rittal
SKU
RIT6446030
Weight
1.82 kg
SM Built-in keyboard 19"/4 U, WHD: 482,6x177x30 mm, Installation depth: 23 mm, german, With integral touchpad
Supply includes
USB connection cable, length 1.8 m
Seal
Drilling template
Assembly components for surfaces

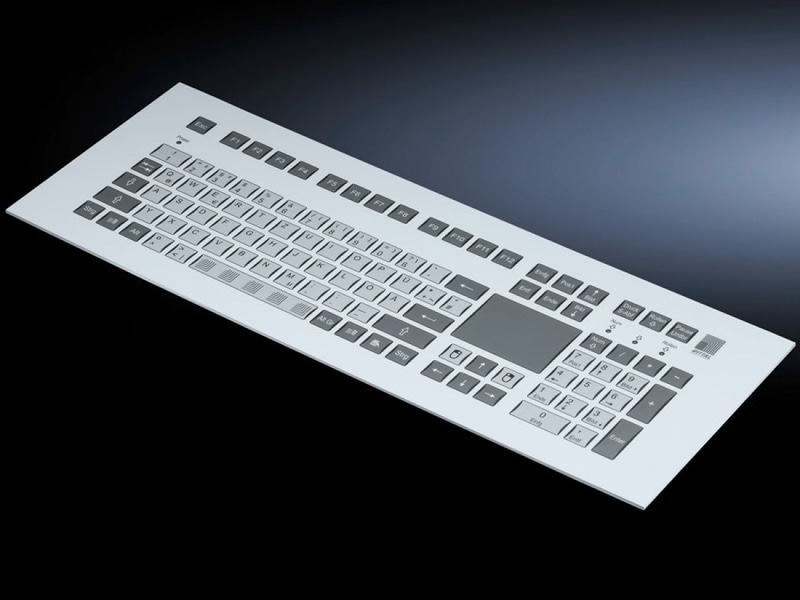

Built-in keyboard 19"/4 U with integral touchpad
The integral touchpad means there is no need to install a mouse in the correct protection category, and cabling is also reduced.
Technical Specifications
Dimensions
| Thread | M5 |
| Thread length | 20 mm |
| Benefits | The separate number pad enables the parameters to be entered quickly |
| Material | Front panel: Aluminum |
| Number keys | 105 |
| Interfaces | 1 x USB |
| Layout | German |
| Resolution capacitive touchpad | 40 pixels/mm |
| Lifetime | 3 million switching cycles |
| Operating temperature range | -40 °C...90 °C |
| Protection category IP to IEC 60 529 | IP 65 (at the front, sealed) |
| Weight/packaging unit | 1.82 kg |
| Customs tariff number | 84716060 |
| EAN | 4028177682115 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
