6206850
Official DistributorBy Rittal
SKU
RIT6206850
Weight
2.86 kg
Series Pivot with/without jib

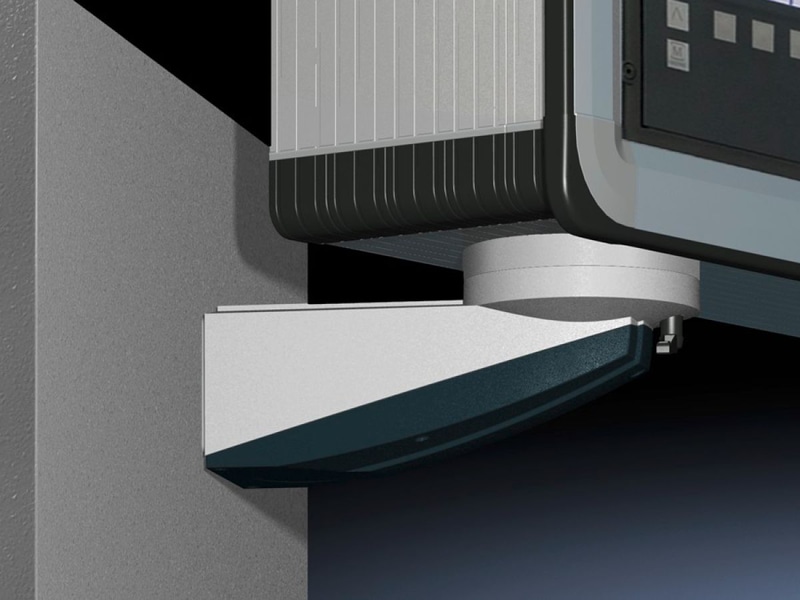

CP Pivot with jib, for wall mounting
Pivot with/without jib
For direct, pivoted integration into machines and systems.
Technical Specifications
| Version | Pivot with jib |
| Benefits | With integral rotation range restrictor |
| Applications | Housing suspended or top-mounted |
| Color | RAL 7024/7035 |
| Jib length | 200 mm |
| Installation options | To fit housings with Ø 130 mm support arm connection |
| Load capacity, static | 700 N |
| Rotation angle/swivel area | Approximately 310° |
| Weight/packaging unit | 2.86 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177707931 |
| ETIM 7.0 | EC002622 |
| ECLASS 8.0 | 27189263 |
