5501460
Official DistributorBy Rittal
SKU
RIT5501460
Weight
2.364 kg

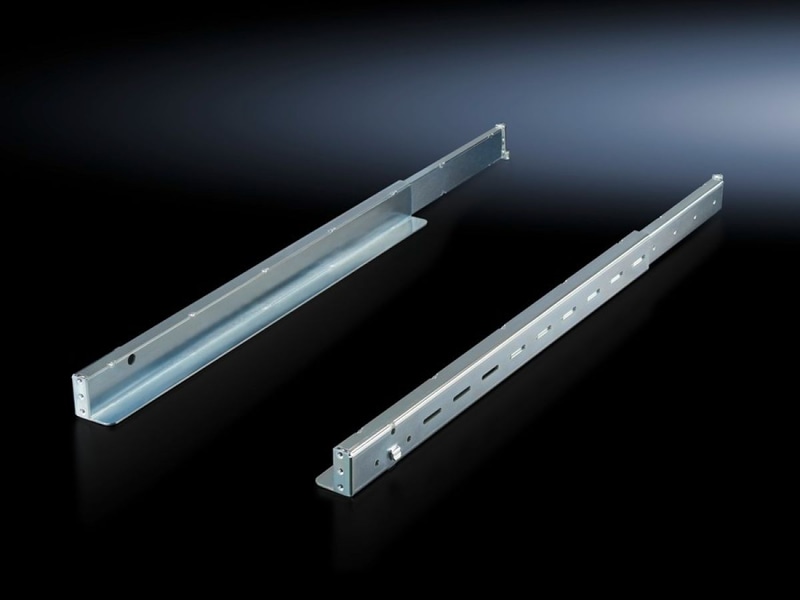

DK Slide rail, support surface width: 25 mm, depth-variable, 80 kg, For two 482.6 mm (19")-mounting angles (front+rear), distance between levels:: 400-600 mm
Supply includes
Assembly components
Slide Rails, 1 U, Depth-Variable for VX IT, TE, TX CableNet
For mounting between a front and a rear mounting level .
Technical Specifications
Suitable for
| Enclosure Type | VX IT |
| Benefits | Tool-free, time-saving one-person assembly from the front of the enclosure |
| Applications | For assembly on the front mounting level |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Installation options | 482.6 mm (19") L-profile rails, front and rear |
| Load Capacity | 800 N |
| Note | Effective contact surface 25 mm per side |
| Distance between levels | 400 ‐ 600 mm |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 2.364 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177679016 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
