3585020
Official DistributorBy Rittal
SKU
RIT3585020
Weight
19.5 kg

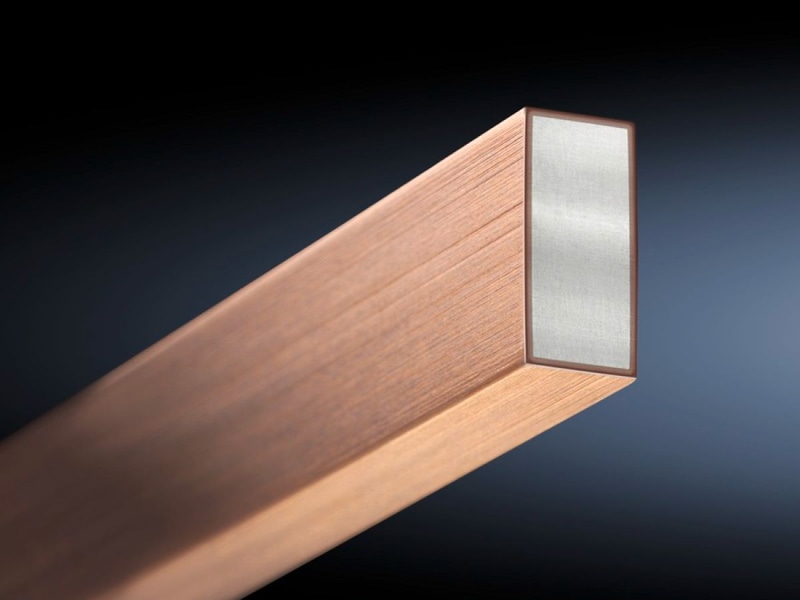

SV Busbar CUPONAL, WH: 20x10 mm, L: 2400 mm
Technical Specifications
Cross-section
| Flat copper bar width | 20 mm |
| Flat copper bar thickness | 10 mm |
| Material | Aluminum Copper |
| Length | 2,400 mm |
| Rated current max. | 363 A |
| Note | The rated current is generated at 65°C rail temperature and 35°C ambient temperature |
| Standards | DIN EN 13 601 |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 19.5 kg |
| Copper weight (kg per piece) | 0.7 |
| Customs tariff number | 74071000 |
| EAN | 4028177686564 |
| ETIM 7.0 | EC001522 |
| ECLASS 8.0 | 27370303 |
Why Proax for Rittal 3585020?
Proax is an authorized distributor of Rittal 3585020 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
