3427040
Official DistributorBy Rittal
SKU
RIT3427040
Weight
2.12 kg

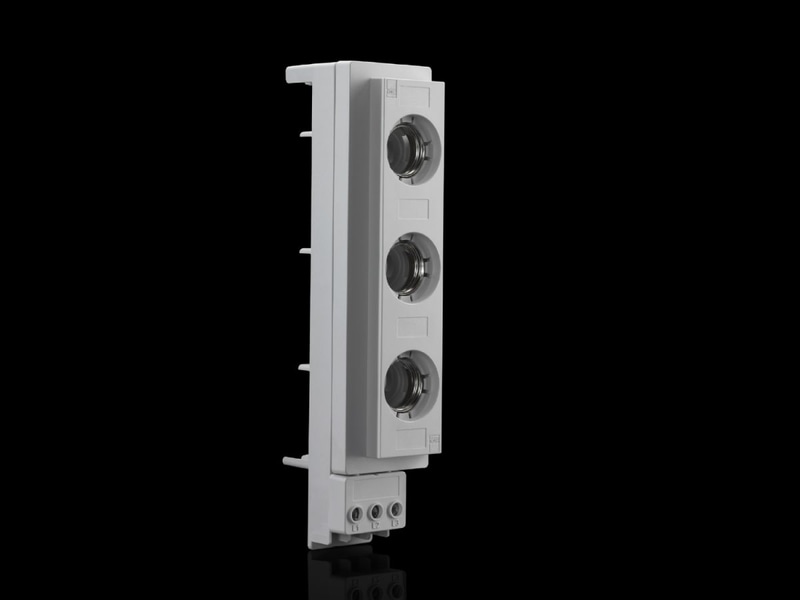

SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw, including cover plate
Supply includes
Pre-assembled component ready for connection including contact hazard protection and exterior terminals.
Technical Specifications
Dimensions
| Width | 56 mm |
| Height | 251 mm |
Material
| Bus-mounting fuse base | Fiberglass-reinforced, thermoplastic polyester (PBT) |
| Contact hazard protection | Polyamide |
| Contact hazard protection | Polyamide |
Suitable for busbars
| Height | 5, 10 mm |
| Version | Easy Connect |
| Color | RAL 7035 |
| Note | For the use of fuse inserts to DIN EN 60 269-3 (DIN VDE 0636-3) |
| For bar systems with center-to-center spacing | 60 mm |
| Type of connection (electrical) | Box terminal |
| Fuse inserts | D II-E 27 (adaptor screw) |
| Rated Insulation Voltage | 690 V |
| Rated current max. | 25 A |
| Connection for round conductor cross-sections | 1.5 ‐ 16 mm² |
| Rated operating voltage | 500 V (DC) |
| Number of Poles | 3-pole |
| Rated operating voltage (L1 + L2) | 500 V (DC) |
| Rated operating voltage (L1 + L3) | 500 V (DC) |
| Packaging unit | 5 pc(s). |
| Weight/packaging unit | 2.12 kg |
| Copper weight (kg per piece) | 0.094 |
| Customs tariff number | 85369095 |
| EAN | 4028177674974 |
| ETIM 7.0 | EC001644 |
| ECLASS 8.0 | 27142120 |
