2482600
Official DistributorBy Rittal
SKU
RIT2482600
Weight
0.58 kg

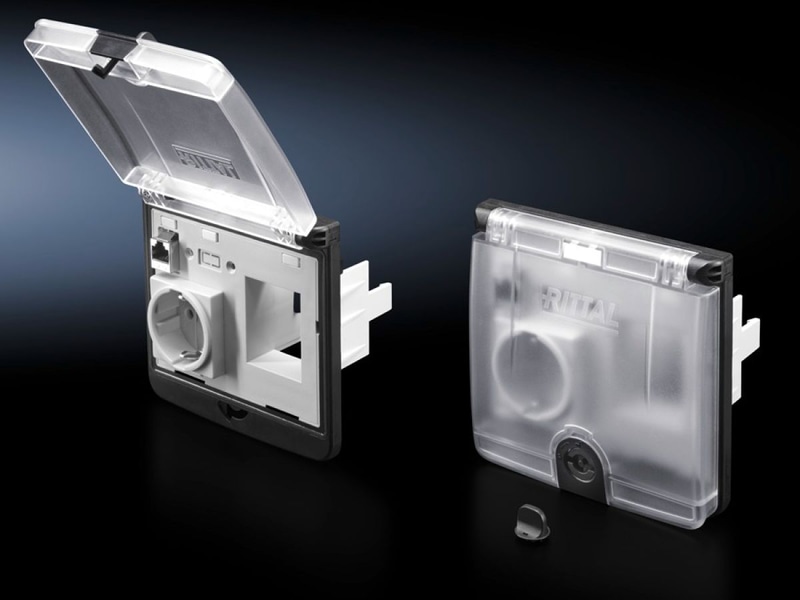

SZ Interface flap, complete, mounting frame and interface inserts, with plastic flap, semi-transparent, RJ45, sockel modules Germany, knock-out for RDC protective switch
Supply includes
Interface flap, complete, consisting of plastic frame, outlet (VDE), RJ 45 (socket/socket, Cat 5e) and cut-out for ground fault circuit interrupter
Knockouts for USB A (socket/socket) provided
3 mm double-bit with insertable rotary knob
Technical Specifications
Dimensions
| Width | 131 mm |
| Height | 127 mm |
Material
| Mounting frame | Plastic PBT (black) |
| Plastic flap | Polycarbonate (semi-transparent) |
Mounting cut-out
| Width of opening | 117 mm |
| Cut-out height | 91 mm |
| Version | Spring terminals max. 2 x 2.5 mm², connection at rear |
| Benefits | Protection against leakage currents and overload |
| Applications | as programmer interface for controllers |
| Function principle | The snap fit closure ensures a good seal. The cover can be locked if necessary. |
| Note | interface flap may only be used when a ground fault circuit interrupter is fitted |
| Rated operating voltage | 250 V, 1~, 50 Hz/60 Hz |
| Rated current 230 V, 50 Hz | 10 ‐ 16 A |
| Protection category IP to IEC 60 529 | IP 65 |
| Weight/packaging unit | 0.58 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177803732 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 2482600?
Proax is an authorized distributor of Rittal 2482600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
