3069313
Official DistributorSKU
PHX3069313
MPN
FIP-3/4 SERVICE
Weight
0.039 kg
Series FIP

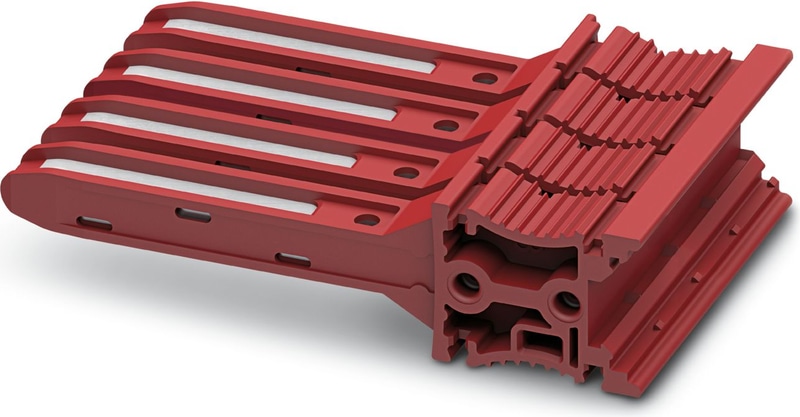

FIP-3/4 SERVICE - Interruption plug
Interruption plug, nom. voltage: 400 V, nominal current: 20 A, color: red
Technical Specifications
Product properties
| Number of Positions | 4 |
| Pitch | 8.2 mm |
Insulation characteristics
| Overvoltage category | III |
Electrical properties
| Rated surge voltage | 4 kV |
| Test surge voltage | 5 kV |
Connection data
| Nominal Current | 20 A |
| Maximum Load Current | 20 A |
| Nominal Voltage | 400 V |
Dimensions
| Width | 32.6 mm |
| Height | 53.4 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | red |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
Mechanical data
| Open side panel | Yes |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | Insertion in base strip |
