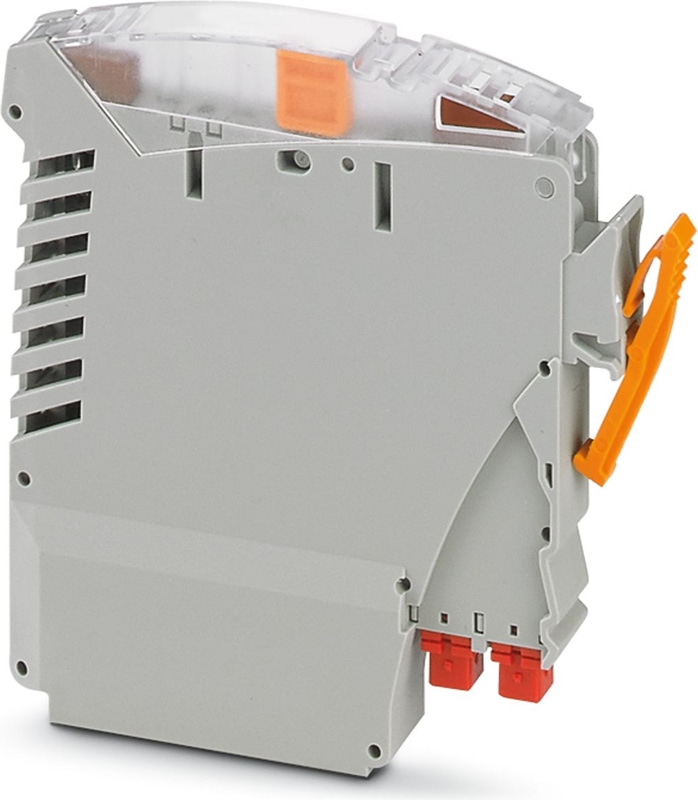

IOA AI/AO/BFI/DS/0.5A/EX - Input/output module
Fuse module for VIP I/O-Marshalling base elements with replaceable 0.5 A fuses in the field device supply path and in the signal path. Integrated test points and a disconnect knife enable uninterrupted signal measurement.
- Signal line blown fuse indication
- Two-stage progressive release allowing for voltage checks with field-powered devices
- Channel for marking accessories
- Replaceable TE5-style fusing
- Signal disconnect with test points
- Integrated keying reduces possible user error during replacement
- 24 V internal marshalling option for connected field device with blown fuse indication
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
| No. of channels | 1 |
| Operating mode | 100% operating factor |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 30 V |
| Max. permissible current | 500 mA (fuse limited) |
| Nominal voltage UN | 24 V DC |
| Max. current carrying capacity per branch | 500 mA (fuse limited) |
Output data
| Nominal Supply Voltage | 24 V DC |
| Continuous load current | 500 mA |
Control circuits
| Connection Method | Pin strip |
| Number of Connections | 1 |
| Number of Positions | 13 |
Safety data
| Input voltage Ui | 30 V |
| Input current Ii | 500 mA |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| Max. output voltage Uo | Ui |
| Max. output current Io | Ii |
| Max. output power Po | Pi |
Signaling
| Status display | No |
| Status display present | Yes, if the fuse fails |
Item dimensions
| Width | 10.3 mm |
| Height | 64.2 mm |
| Depth | 72.9 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | CSANe 21ATEX4128X |
IECEx
| Identification | Ex nA IIC T4 Gc |
| Certificate | IECEx CSAE 21.0004X |
UKEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | PxCIF23UKEX2906598X |
UL, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, IIC T4 |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, AEx nA IIC T4 Gc |
| Identification | Ex nA IIC T4 Gc |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Accessories
