Official DistributorSKU
MPN
IB STME 24 BAI 8/EF
Weight
0.25 kg
Series IB-STME

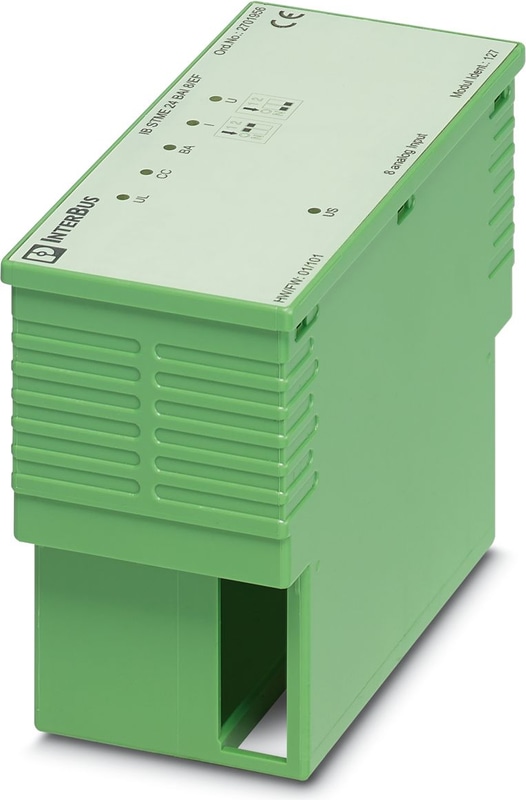

IB STME 24 BAI 8/EF - Replacement electronics module
INTERBUS-ST analog input module, 8 inputs, 0 - 5 V, 0 - 10 V, 0 - 25 V, 0 - 50 V, 0 - 20 mA, 4 - 20 mA, 0 - 40 mA, 0 - 60 mA, degree of protection IP20, comprising: Module electronics only
- 8 analog inputs for the connection of either voltage or current signals
- Connection of sensors in 2-conductor technology
Technical Specifications
ST local bus
| No. of channels | 2 |
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
| Transmission physics | Copper |
Module
| ID code (dec.) | 127 |
| ID code (hex) | 7F |
| Length code (hex) | 4 |
| Length code (dec) | 4 |
| Input address area | 8 Byte |
| Output address area | 0 Byte |
| Register length | 8 Byte |
Analog:
| Input name | Analog inputs |
| Number of Inputs | max. 8 (Voltage or current) |
| A/D conversion time | max. 10 µs (per channel) |
| Connection technology | 2, 3-conductor |
| Measuring Principle | Successive approximation |
| Measured value representation | 8 bit straight binary (default) or 12 bit two’s complement (can be parameterized) |
| Number of Inputs | 8 (Voltage inputs) |
| A/D converter resolution | 12 bit (4096 steps; 2.44 mV/quantization steps) |
| A/D converter resolution | 8 bit (256 steps; 39 mV/quantization steps) |
| Voltage input signal | 0 V ... 10 V |
| Voltage input signal | 0 V ... 5 V |
| Voltage input signal | 0 V ... 25 V |
| Voltage input signal | 0 V ... 50 V |
| Input resistance of voltage input | 150 kΩ |
| Number of Inputs | 8 (Current inputs) |
| A/D conversion time | max. 10 µs |
| A/D converter resolution | 12 bit (4096 steps; 3.91 µA/quantization steps) |
| A/D converter resolution | 8 bit (256 steps; 62.7 µA/quantization steps) |
| Current Input Signal | 4 mA ... 20 mA |
| Current Input Signal | 0 mA ... 20 mA |
| Current Input Signal | 0 mA ... 40 mA |
| Current Input Signal | 0 mA ... 60 mA (rms) |
| Current Input Signal | 0 mA ... 100 mA (peak) |
| Input resistance current input | 77 Ω |
Product properties
| Type | modular |
| Type | INTERBUS Smart Terminal |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| Diagnostics messages | F1 fuse failure I/O error message sent to the bus coupler |
| Diagnostics messages | I/O supply failure I/O error message sent to the bus coupler |
Supply: Module electronics
| Connection Method | ST local bus connector |
| Designation | Communications power |
| Supply Voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| Current consumption | max. 80 mA |
| Power consumption | typ. 0.5 W |
Supply:
| Designation | US |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.5 V DC ... 30.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 45 mA (Ib = 0 mA (Ib = total current for supplying passive sensors for all channels)) |
| Current consumption | typ. 120 mA (Ib = 100 mA (Ib = total current for supplying passive sensors for all channels)) |
Supply: Passive sensor supply
| Designation | UB (generated internally) |
| Supply Voltage | 15 V ±6 % |
| Current consumption | max. 100 mA (Total for all channels) |
Electrical isolation/isolation of the voltage ranges
| Test voltage: Bus/Inputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/inputs | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Supply voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
| Test voltage: I/O voltage/Ground conductor | 500 V AC, 50 Hz, 1 min. |
Connection data
| Connection Method | Snap on |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Degree of Protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2701956?
Proax is an authorized distributor of Phoenix Contact 2701956 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
