2202529
Official DistributorSKU
PHX2202529
MPN
EH 45 FLAT DEV-KIT KMGY
Weight
0.084 kg
This product is Not Cancellable/Not Returnable
Series EH

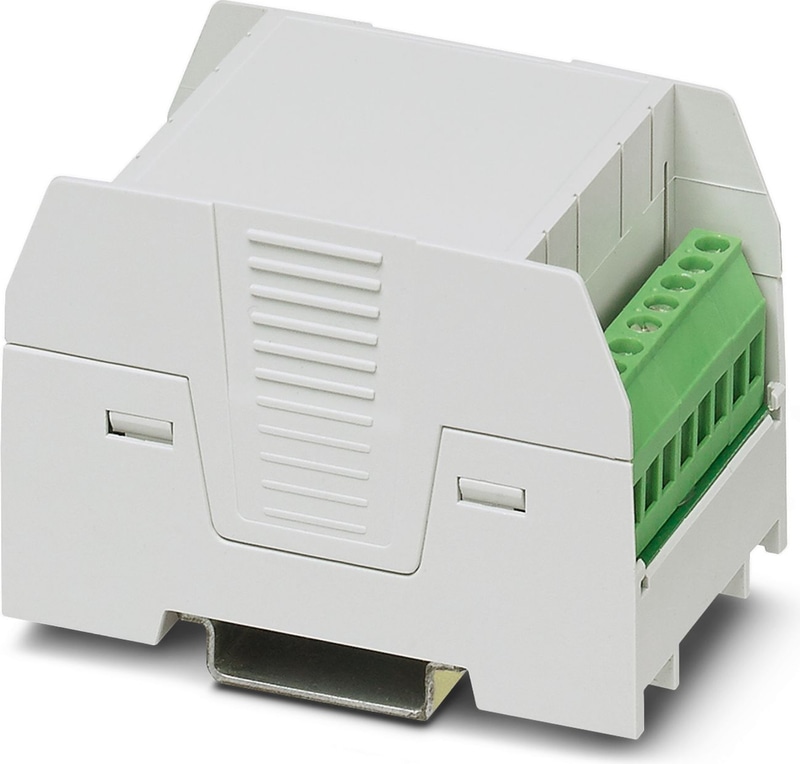

EH 45 FLAT DEV-KIT KMGY - Housing set
DEV-KIT EH 45 FLAT: contains 1 x EH 45 FLAT housing and PCB terminal blocks (MKDS ... 5,08), supplied in individual parts
- Flat housing with an overall width of 45 mm
- PCB terminal blocks with 5.08 mm pitch, conductor cross-section of 2.5 mm²
- Optional perfboard for soldering THT components by hand
Technical Specifications
Product properties
| Housing type | DIN rail housing |
| Housing series | EH |
| Product family | EH..F..ABS.. |
| Ventilation openings present | no |
Dimensions
| Width | 45 mm |
| Height | 75.4 mm |
Material specifications
| Color (Lower housing part) | light grey (RAL 7035) |
| Color (Upper housing part) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | HB |
| Housing Material | ABS |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (depending on power dissipation) |
PCB data
| Type of PCB mount | Latching |
Why Proax for Phoenix Contact 2202529?
Proax is an authorized distributor of Phoenix Contact 2202529 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
