2202525
Official DistributorSKU
PHX2202525
MPN
BC 107,6 DEV-KIT KMGY
Weight
0.173 kg
Series BC

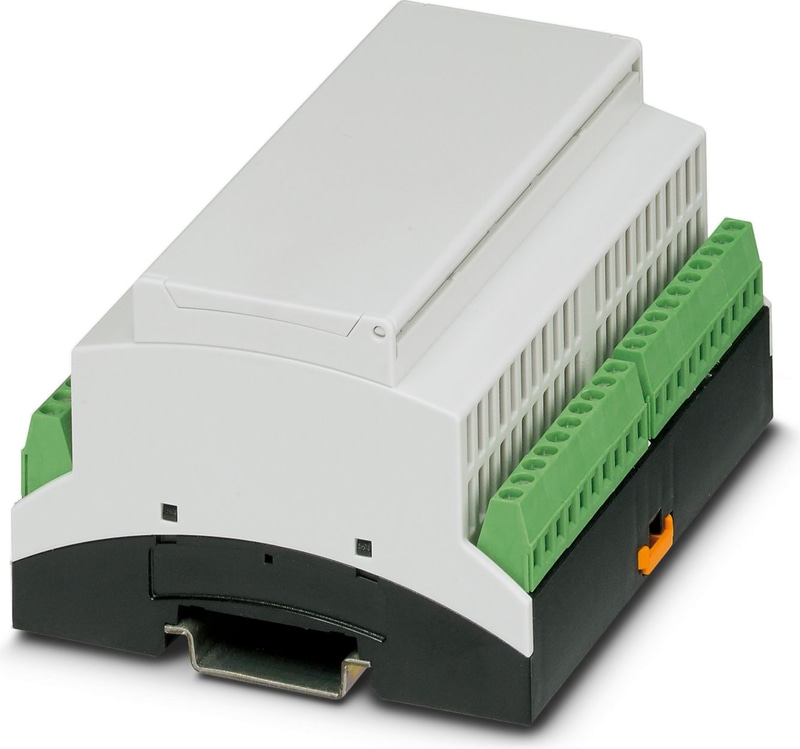

BC 107,6 DEV-KIT KMGY - Housing set
DEV-KIT BC 107,6: contains 1 x BC 107,6 housing and PCB terminal blocks (MKDS), supplied in individual parts
- Standard-compliant housing according to DIN 43880 with overall width of 107,6 mm
- PCB terminal blocks with 5 mm pitch, conductor cross section 1.5 mm²
- Optional perfboard for soldering THT components by hand
- Connection of individual housing modules with each other by means of the optional HBUS via DIN rail
Technical Specifications
Product properties
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Product family | BC 107,6 |
| Ventilation openings present | yes |
Dimensions
| Width | 107.6 mm |
| Length | 89.7 mm |
Material specifications
| Color (Lower housing part) | black (RAL 9005) |
| Color (Upper housing part) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polycarbonate |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
PCB data
| Type of PCB mount | Latching |
Mounting
| Mounting Type | Snap in |
| Mounting Position | parallel to the DIN rail |
