2201520
Official DistributorSKU
PHX2201520
MPN
EH 67,5-C CS/ABS GY7035
Weight
0.03 kg
Series EH

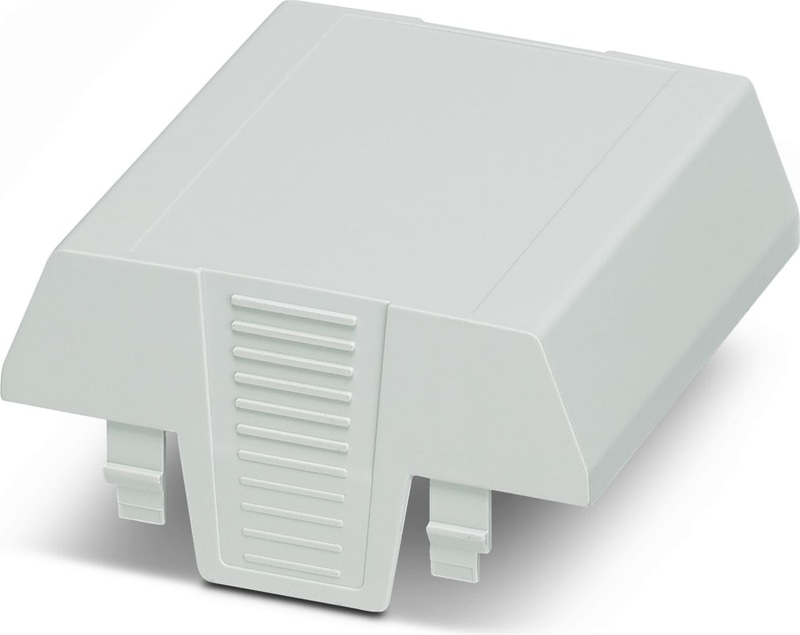

EH 67,5-C CS/ABS GY7035 - Upper housing part
DIN rail housing, Upper housing part, tall design, no connection opening, width: 67.6 mm, height: 75.26 mm, depth: 36.95 mm, color: light grey (similar RAL 7035)
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
- Integration of a wide variety of PCB connection technologies for a functional device design
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | DIN rail housing |
| Housing series | EH |
| Product family | EH..ABS.. |
| Type | Upper housing part, tall design, no connection opening |
| Ventilation openings present | no |
Dimensions
| Width | 67.6 mm |
| Height | 75.26 mm |
| Depth | 36.95 mm |
| Depth from base support surface | 19.95 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | HB |
| Housing Material | ABS |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Type of PCB mount | Latching |
Mounting
| Mounting Type | Snap in |
| Mounting Position | Vertical (horizontal DIN rail) |
