Phoenix Contact 1446388
AllConnectorsCircular connectors

1446388

Official Distributor

By Phoenix Contact

SKU
PHX1446388
MPN
SACC-EC-MS-8CON-M16/2,0 SCO
Weight
0.069 kg
This product is Not Cancellable/Not Returnable
Series SACC-EC-MS

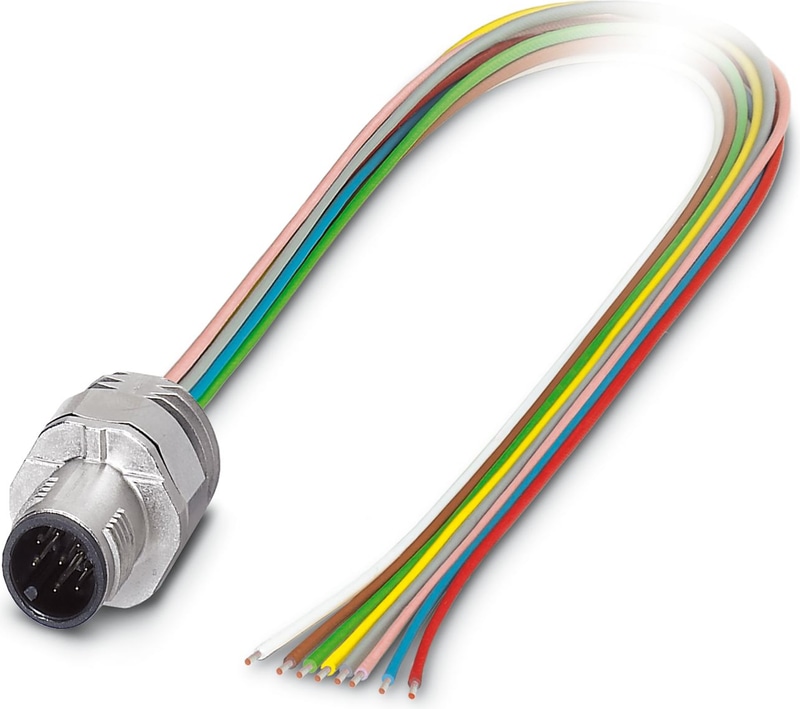

SACC-EC-MS-8CON-M16/2,0 SCO - Device connector front mounting

Device connector front mounting, 8-position, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 2 m, 0.25 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239792

Technical Specifications

Notes

Order information:Lock nut is included in the scope of delivery
GeneralContact connection method: Crimp connection

Mounting

Mounting TypeFront mounting M16 x 1.5

Product properties

Number of Positions8
No. of cable outlets1
Shieldedno
CodingA
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialNBR
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Conductor materialTin-plated Cu litz wires

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN2 A
Max. conductor resistance80 mΩ/m

Conductor connection

Connection MethodIndividual wires
Contact connection typePin
Conductor Cross Section0.25 mm²

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA

Connection 2

Head designfree cable end

Cable/line

Cable Length2 m
Cable TypeTPE litz wire
Wire diameter incl. insulation1.15 mm ±0.07 mm
Single wire, colorbrown, blue, white, gray, pink, green, yellow, red
Cable cross section0.25 mm²
Conductor materialTin-plated Cu litz wires
Conductor structure signal line14x 0.15 mm
AWG Signal Line24
Material wire insulationTPE
Thickness, insulation0.21 mm (Core insulation)
Nominal voltage, cable300 V
Test voltage, cable2000 V AC
Cable resistance≤ 80 mΩ/m
Cable insulation resistance≥ 20 MΩ*km

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-25 °C ... 90 °C (cable, fixed installation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Why Proax for Phoenix Contact 1446388?

Proax is an authorized distributor of Phoenix Contact 1446388 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
