MPDB67562
Official DistributorBy Mersen
SKU
MERMPDB67562
Weight
0.499 kg

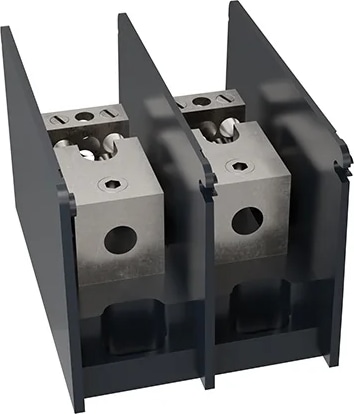

Open-Style PDB UL 1953 1000V 135A Tin‑plated Aluminum – 175A 2‑Pole 1‑6 openings; 2/0‑#14 --- #2‑#14 Box to Box
Technical Specifications
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| Frequency | 50/60 Hz |
| Number of Poles | 2 |
| Installation Mounting | Direct Screw Mount |
| Connector Material | Tin-plated Aluminum |
| primary openings per pole | 1 |
| secondary openings per pole | 6 |
| product dimensions | 90.7 mm x 78.2 mm x 82.6 mm |
| Short Circuit Rating Standalone | 10 kA |
| torque rating primary | 2/0-#6: 120; #8-#14: 50 |
| torque rating secondary | #2-#3: 50; #4-#6: 35; #8: 25; #10-#14: 20 |
| Wire Range Primary | 2/0-#14 |
| Wire Range Secondary | #2-#14 |
| Connector Type | Box to Box |
| Insulating material | Glass Filled Polycarbonate |
| ampere rating aluminum | 135 A |
| ampere rating copper | 175 A |
| short circuit rating with fuses | 100 kA |
Why Proax for Mersen MPDB67562?
Proax is the authorized distributor of Mersen MPDB67562. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
