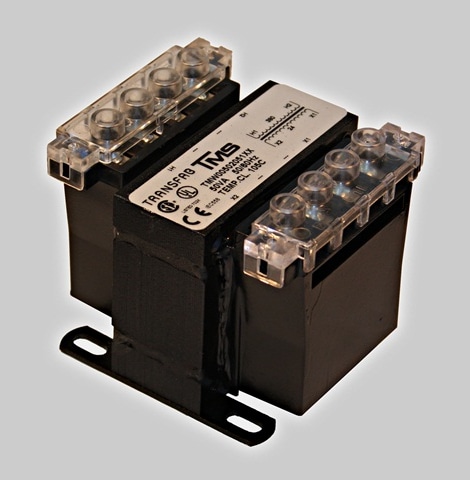

TMW07502070PK

This product operates at a frequency of 50/60 Hz and offers three insulation classes: Class A (105°C), Class B (130°C), and Class H (180°C). The temperature rise is kept under control with options of less than 55°C, 80°C, or 120°C. Noise levels are minimized to under 40 dB, ensuring a quiet operation environment. Insulation is rigorously tested at a minimum of 2500 Vrms Hi POT, providing reliable performance and safety.

Key features include:

• Epoxy encapsulated coils for cooler, safer operation
• Molded terminal barriers for enhanced protection
• 10-32 screw terminals with Phil-slot screws for easy connections
• Safe Touch terminal covers for additional safety
• SEM washers for secure fittings
• Full nameplate VA rating for clear identification
• The largest standard voltage selection in the industry
• Compliance with true IP-20 or IP-00 terminal protection ratings as defined in IEC-61558
• EN61558-2-2 compliance
• 20-year warranty for long-term assurance
