7030550
Official DistributorBy Rittal
SKU
RIT7030550
Weight
0.604 kg
This product is Not Cancellable/Not Returnable

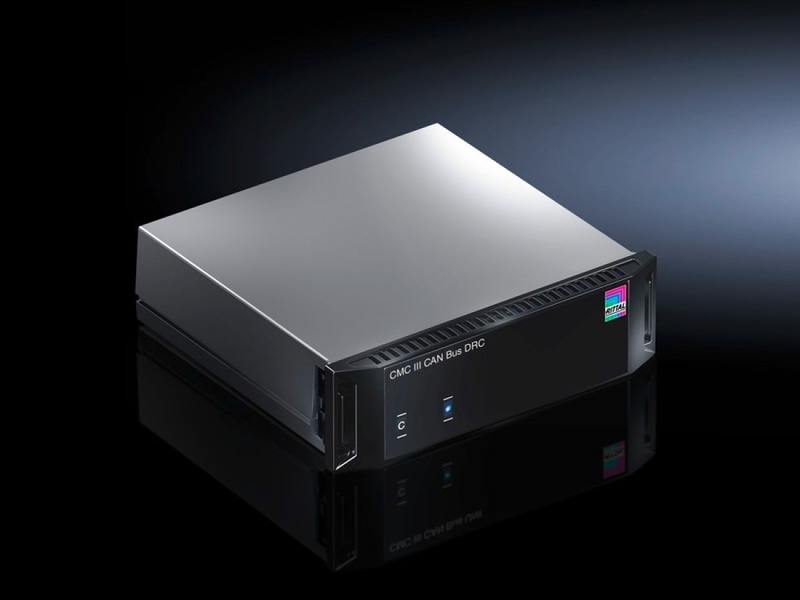

DK CMC III CAN bus DRC, WHD: 138x40x132 mm
Supply includes
CMC III CAN bus DRC
Installation and Short User's Guide
Assembly components for surfaces
Mounting clips for support rails
Mounting accessories
Technical Specifications
Color
| Housing | RAL 7035 |
| Front | RAL 9005 |
Dimensions
| Width | 138 mm |
| Height | 40 mm |
| Depth | 132 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | The CAN bus DRC is required for connecting the RFID system to the CMC III. It connects the RFID controller to the CAN bus of the CMC III. |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Managing the 19" equipment via the DRC system in enclosures in the fields of IT, industry and buildings technology. |
| Function principle | Settings can be made via the CMC III Processing Unit |
| Interface bus system | 2 x RJ45 CAN bus |
| Interfaces | RJ45 |
| Number of participants PU compact (max.) | 2 |
| Number of participants PU (max.) | 4 |
| Note | For each CAN bus DRC, an additional power pack 7030.060 is required. |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.604 kg |
| Customs tariff number | 85176200 |
| EAN | 4028177695887 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
Why Proax for Rittal 7030550?
Proax is an authorized distributor of Rittal 7030550 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
