6206480
Official DistributorBy Rittal
SKU
RIT6206480
Weight
1.1 kg

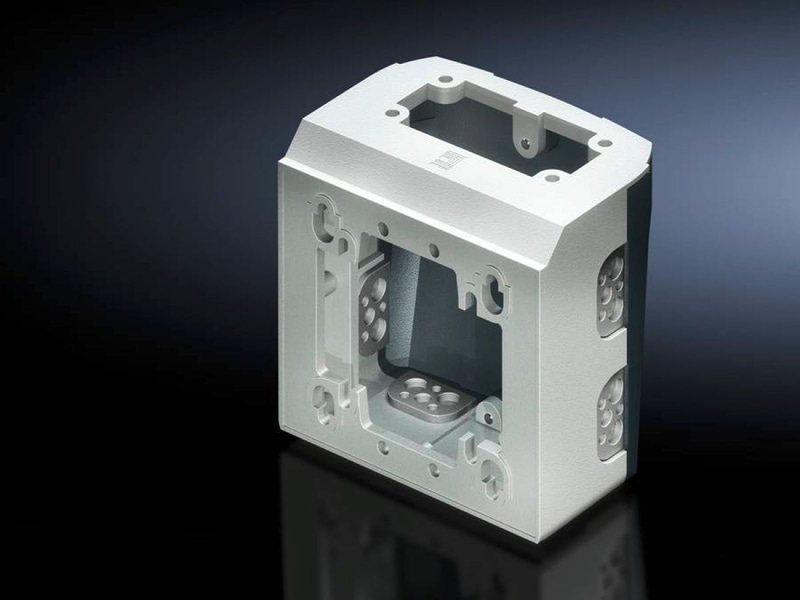

CP Connection console VESA 75/100
Supply includes
Seal and assembly components
Cable ties for cable clamping
Connection console VESA 75/100
For rear connection of flat command panels, standard TFTs and industrial PCs with VESA 75/100 connection. May be connected to Rittal CP 40 and CP 60 support arm systems, and also to CP 120 by using a Ø 130 mm to rectangular 120 x 65 mm support arm connection adaptor.
Technical Specifications
Color
| Connection console | RAL 7035 |
| Cover | RAL 7024 |
| Version | Connection to Rittal support arm systems |
| Benefits | Fast, simple one-person assembly using machined keyholes |
| Material | Die-cast zinc |
| Rifid y/n | Yes |
| Note | Depending on the application, an attachment, coupling or adapter are required |
| Load Capacity | 800 N |
| Weight/packaging unit | 1.1 kg |
| Customs tariff number | 79070000 |
| EAN | 4028177693920 |
| ETIM 7.0 | EC002622 |
| ECLASS 8.0 | 27189263 |
Why Proax for Rittal 6206480?
Proax is an authorized distributor of Rittal 6206480 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
