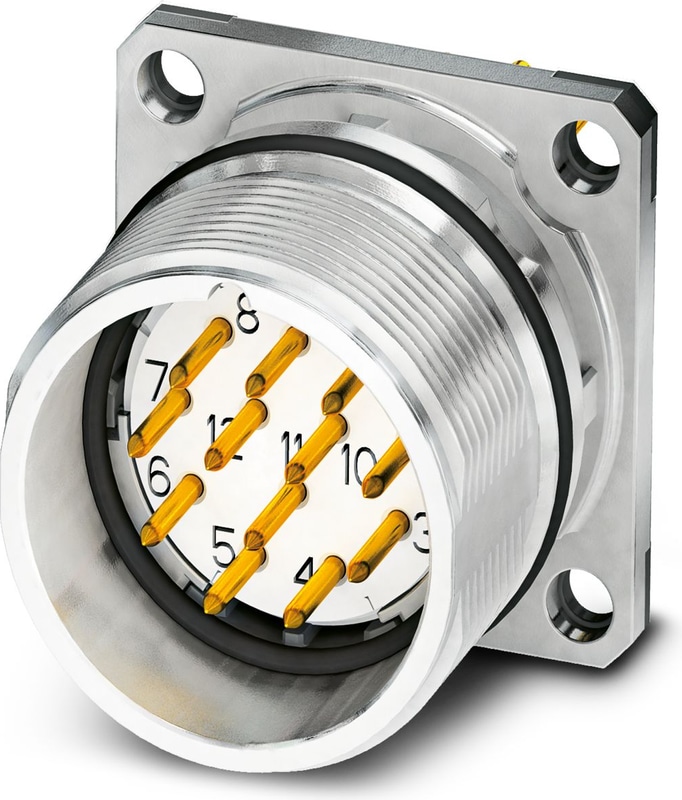

Phoenix Contact 1619909
AllConnectorsCircular connectors

1619909

Official Distributor

By Phoenix Contact

SKU
PHX1619909
MPN
CA-12P1NC22S00
Weight
0.033 kg
Series CA

CA-12P1NC22S00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder-in connection, Flat gasket, 4x Ø 3.2, flange dimensions: 25 mm x 25 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243887

  • Safe use in the field, thanks to high degree of protection
  • Consistent EMC protection for reliable transmission of signals
  • Easy device integration: solder-in contacts available in different lengths

Documents

Technical Specifications

Dimensions

Length of the solder pin17.5 mm
Length of the solder pin17.5 mm

Insulating body

CodingN
Insulation body materialPBT
Contact MaterialCuZn
Contact surface materialNi/Au
Connection MethodSolder-in connection
Contact switching typePin
ApplicationSignal
Number of Positions12
Direction of rotationStandard
Connection profile12
Contact diameter Power contacts1 mm
Rated current Power contacts8 A
Rated surge voltage1.5 kV
Overvoltage categoryIII
Degree of pollution3

Housing

Housing MaterialGD-Zn
Flange dimensions25 mm x 25 mm
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Thread typeM23

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 125 °C
Accessories
  • 1604225
    1604225
    Protective cap - RC-Z2059
  • 1611797
    1611797
    Plastic anti-static dust protection cap - RC-Z2469
  • 1604260
    1604260
    Metal protective cap - RC-Z2104
  • 1604236
    1604236
    Metal protective cap - RC-Z2068
  • 1620704
    1620704
    Color-coding - CA-Z0120
  • 1620705
    1620705
    CA-Z0121 - Color coding, color: orange
  • 1620706
    1620706
    CA-Z0122 - Color coding, color: black
  • 1620699
    1620699
    CA-Z0001 - Unlocking tool for contact carriers for snapping in the M23 signal device connectors
