Name: 1414353
Brand: Phoenix Contact
SKU: PHX1414353
Price: 3.0500 CAD
Availability: InStock

Official Distributor

By Phoenix Contact

SKU

MPN

HC-M-00

Series HC-M

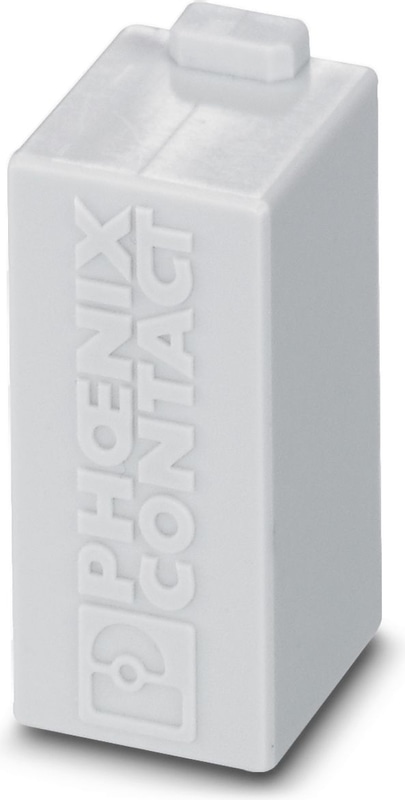

HC-M-00 - Dummy module

HEAVYCON dummy module, for unused slots in the module carrier frame

Notes

General

Connectors may be operated only when there is no load/voltage.

Product properties

Series	HC-M-00
Application	Dummy module
Number of module slots	1

Dimensions

Width	34.2 mm
Height	16.8 mm
Length	14.6 mm

Material specifications

Material	PC
Flammability rating according to UL 94	V0
Contact carrier material	PC

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C

1182085
HC-M-B06-MFH-B - Module carrier frame, size: B6, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
1182088
Module carrier frame - HC-M-B10-MFH-B
1182090
HC-M-B16-MFH-B - Module carrier frame, size: B16, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
1182094
HC-M-B24-MFH-B - Module carrier frame, size: B24, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
1182087
HC-M-B06-MFH-H - Module carrier frame, size: B6, type : for the sleeve side (A, B, C, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
1182089
Module carrier frame - HC-M-B10-MFH-H
1182093
HC-M-B16-MFH-H - Module carrier frame, size: B16, type : for the sleeve side (A, B, C, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
1182095
HC-M-B24-MFH-H - Module carrier frame, size: B24, type : for the sleeve side (A, B, C, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
