M253
Official DistributorBy Mersen
SKU
MERM253
Series UL508 Switch
UL508 Switch 600VAC Non-Fused 25A 3-Pole Direct Screw Mount
UL508 Switch

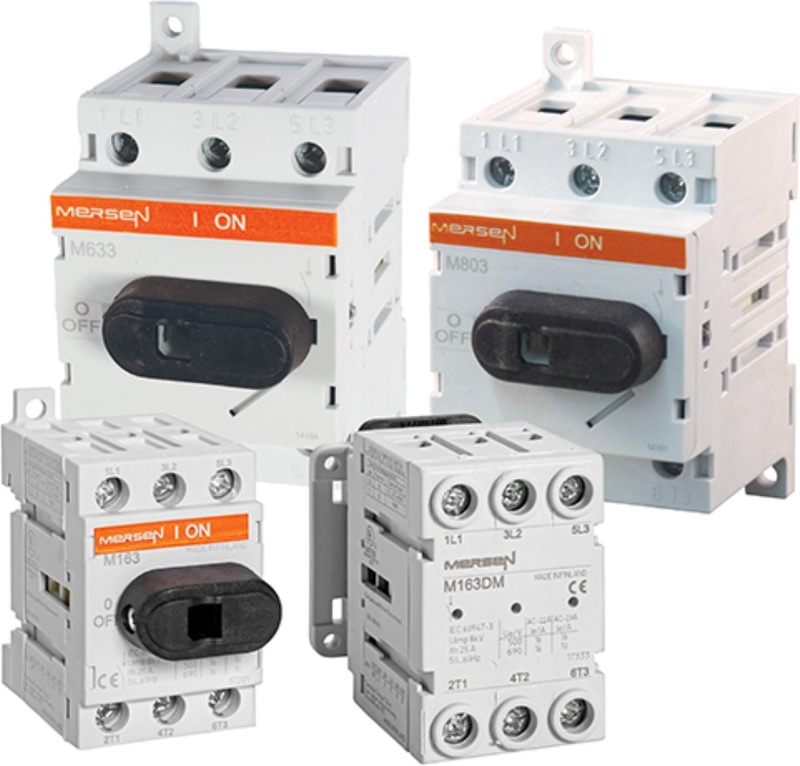

The M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.
Features
- Compact
- Robust
- DIN-rail, base, or door mounting
- Choice of handles and shafts
- Padlockable
- Side-mount auxiliary contacts and additional poles
- Double-break, silver-plated, contacts
Applications
- Line-of-sight disconnect
- Electrical isolation
- Branch-circuit switch
- Motor disconnect
Technical Specifications
| Ampere Rating | 25 A |
| Ac Or Dc Or Ac Dc | AC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 0 V |
| Product Height | 45 mm |
| Product Length | 54.1 mm |
| Product Width | 35.1 mm |
| Product Weight | 0.1089 kg |
| Installation Mounting | Direct Screw Mount |
| Number of Poles | 3-Pole |
| Wire Connections | Box |
| Wiring Range | #18-8 |
| Max Horsepower Rating Fla | 3-Phase: 240V 7.5HP, 480V 15HP, 600V 20HP; 1-Phase 120V 1.5HP, 240V 3HP |
| Short Circuit Current Rating Sccr | Up to 100 kA with fuses |
| short circuit rating class j | 10 kA w/60A kA |
| short circuit rating class rk5 | 5 kA w/60A kA |
