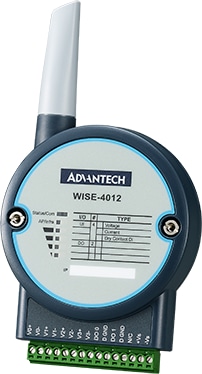

WISE-4012-AE
Official DistributorBy Advantech
SKU
ADVWISE4012AE
Advantech's new generation of remote I/O devices bring an IT oriented spirit to the market. With the advanced concepts of data A-P-P, data Acquisition, data Processing to data Publishing, fulfilling mobile monitoring and controlling needs under an IoT framework. Broad adoptability has made WISE a reliable source of big data which benefits users in identifying their next steps and which action to take. With intelligent processing and publishing features, the time it takes to generate insightful reports can be shortened. Thus users can quickly notice and identify possible issues and system downtime can be minimized or even avoided.
The WISE-4012, an IoT wireless I/O module with 4-ch universal input and 2-ch digital output, has an integrated Wi-Fi interface wuth AP mode and web configuration which can be accessed by mobile device directly. Data can be logged in the I/O module and then automatically pushed to the file-based cloud.
Features
- 2.4 GHz IEEE 802.11b/g/n WLAN
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports file-based cloud storage and local logging with RTC time stamp
- Supports RESTful web API in JSON format for IoT integration
- Configured by mobile devices directly without installing software or App
Documents
Technical Specifications
Analog input
| Burn-out Detection | Yes |
| Channels | 4 |
| Input Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA |
| Isolation Protection | 4,200 VDC |
| lnput Type | V, A, Dry contact DI |
| Resolution(Bits) | 16-bit |
| Sampling Rates(S/s) | 10/100 Hz (sum) |
Digital input
| Channels | 4 (TTL) |
| Input Voltage | Dry Contact Logic level 0: open Logic level 1: close to Iso.GND |
| Isolation Protection | 4,200 VDC |
Digital output
| Channels | 2 (TTL) |
| Isolation Protection | 4,200 VDC |
Environment
| Operating Temperature | -25~70 °C (-13~158 °F) |
| Relative Humidity | 20~95% RH (non-condensing) |
| Storage Humidity | 0~95% RH (non-condensing) |
| Storage Temperature | -40~85 °C (-40~185 °F) |
General
| Connectors | 1 x Plug-in screw terminal |
| Humidity (Operating) | 20~95% RH (non-condensing) |
| Humidity (Storage) | 0~95% RH (non-condensing) |
| Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT |
Hardware
| Certification | CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC |
| LED Indicators | Status, Communication (TX/RX), AP/Infra, Signal Strength |
| Power consumption | 2.5 W @ 24 VDC |
| Power Input | 10~30 VDC |
| Watchdog Timer | 1.6 s |
Mechanical
| Dimension (W x H x D) | 80 x 148 x 25 mm |
| Enclosure | PC |
| Mounting | DIN-rail, Wall, Stack |
| Weight (Net) | 0.15 kg |
Power Requirements
| Input Voltage | 10~30 VDC |
Wireless Communication
| Frequency band | IEEE 802.11 b/g/n 2.4 (GHz) |
| Standard(Technology) | WIFI |
