S803-BB250
Official DistributorBy ABB
SKU
ABBS803BB250
MPN
2CCS800900R0071
Weight
1.604 kg

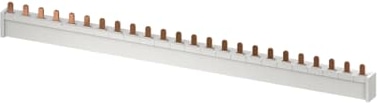

The S803-BB250 is a 3-pole busbar with 24 terminal lugs. It can be used for rated current up to 250A.
Technical Specifications
Technical
| Suitable for | S800S |
| Suitable for | S800N |
| Suitable for | S800C |
| Suitable for | S800B |
| Rated Operational Current (Ie) | 250 A |
| Model Number | Flat |
| Tightening torque | 3.5 N·m |
| Recommended Screw Driver | Pozidriv 2 |
| Terminal Type | Screw Terminals |
Electrical
| Rated Operational Voltage | 400/690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Current (In) | 250 A |
| Rated Frequency (f) | 50...60 Hz |
Design
| Housing Material | Insulation group I |
Dimensions
| Product Net Width | 60 mm |
| Product Net Height | 27 mm |
| Product Net Depth / Length | 654 mm |
| Product Net Weight | 1604 g |
| Dimension Diagram | 2CCC413003C0201 |
Installation
| Instructions and Manuals | 9AKK106930A3418 |
Why Proax for ABB S803-BB250?
Proax is an authorized distributor of ABB S803-BB250 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | S803BB250 |
| Pack Size | 1 |
