Official DistributorBy ABB
SKU
MPN
2CSS201997R0013
Weight
1 kg

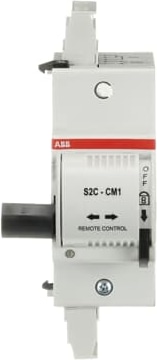

The S2C-CM1 motor operating device has the function to allow the remote control (opening or closing) of the MCB it is associated to. It can assembled to 1 pole MCBs (up to 63A) of S200 range.
Technical Specifications
Technical
| Suitable for | S200 |
| Suitable for | S200M |
| Suitable for | S200P |
| Suitable for | S200 MUC |
| Suitable for | SD200 |
| Suitable for | S300P |
| Suitable for Product Class | Miniature Circuit Breakers MCBs |
| Rated voltage (UR) | 12 V |
| Operational Voltage | 12 … 30 +10% –15% V AC |
| Operational Voltage | 12 … 48 +10% –15% V DC |
| Input Voltage Type | AC/DC |
| Rated Frequency (f) | AC 50 … 60 Hz |
| Power Consumption (@Pcons) | 12 (V AC) < 16 V·A |
| Power Consumption (@Pcons) | 24 (V AC) < 27 V·A |
| Power Consumption (@Pcons) | 30 (V AC) < 28 V·A |
| Power Consumption (@Pcons) | 12 ... 48 (V DC) < 22 V·A |
| Power Loss | 1.5 W |
| Electrical Endurance | 20000 cycle |
| Number of Contacts CO | 1 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| Mounting Type | DIN-Rail |
| Connecting Capacity | 2.5 mm² |
| Terminal Type | Screw Terminals |
Dimensions
| Product Net Width | 36 mm |
| Product Net Height | 0.089 m |
| Product Net Depth / Length | 0.081 m |
| Product Net Weight | 0.168 kg |
Installation
| Instructions and Manuals | 9AKK107680A3323 |
Why Proax for ABB S2C-CM1?
Proax is an authorized distributor of ABB S2C-CM1 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | S2CCM1 |
| Pack Size | 1 |
