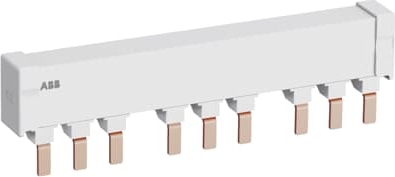

PS2-3-0-125
Official DistributorBy ABB
SKU
ABBPS220125
MPN
1SAM401920R1003
Weight
0.162 kg
PS2-3-0-125 3-phase busbars ensure a quick and safe connection of 3 MS165 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 125 A.
Technical Specifications
Dimensions
| Product Net Width | 170 mm |
| Product Net Height | 53 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Weight | 0.162 kg |
Technical
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current (Ie) | 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Number of Poles | 9P |
| Degree of Protection | IP20 |
| Pollution degree | 3 |
| Standards | IEC/EN 60947-4-1 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
Why Proax for ABB PS2-3-0-125?
Proax is an authorized distributor of ABB PS2-3-0-125 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PS230125 |
| Pack Size | 1 |
