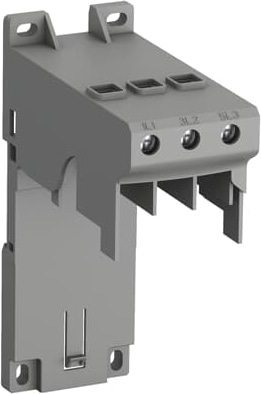

DB45EF
Official DistributorBy ABB
SKU
ABBDB45EF
MPN
1SAX201910R0001
Weight
0.1 kg
The DB45EF single mounting kit allows the installation of EF45 electronic overload relays without a contactor on a DIN rail or mounting plate.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 98 mm |
| Product Net Weight | 0.1 kg |
Technical
| Number of Poles | 3P |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 10 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1x 2.5 ... 10 mm² |
| Connecting Capacity Main Circuit | Flexible 1x 2.5 ... 10 mm² |
| Connecting Capacity Main Circuit | Rigid 1x 2.5 ... 16 mm² |
| Tightening torque | Main Circuit 0.8 ... 1.5 N·m |
| Wire Stripping Length | Main Circuit 15 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Suitable for | EF45 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
Technical UL/CSA
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 14-6 AWG |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1x 14-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 7 ... 13 in·lb |
Why Proax for ABB DB45EF?
Proax is an authorized distributor of ABB DB45EF and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
