DB19EF
Official DistributorBy ABB
SKU
ABBDB19EF
MPN
1SAX101910R1001
Weight
0.077 kg

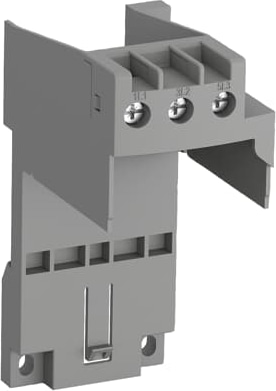

The DB19EF single mounting kit allows the installation of EF19 electronic overload relays without a contactor on a DIN rail or mounting plate.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 103.5 mm |
| Product Net Depth / Length | 67.3 mm |
| Product Net Weight | 0.046 kg |
Technical
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 18.9 A |
| Rated Operational Current AC-3 (Ie) | 18.9 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3 |
| Number of Protected Poles | 3 |
| Pollution degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Flexible 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Rigid 1x 1 ... 4 mm² |
| Tightening torque | Main Circuit 0.8 ... 1.5 N·m |
| Wire Stripping Length | Main Circuit 12 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Suitable for | EF19 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 18-10 AWG |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 18-10 AWG |
| Tightening Torque UL/CSA | Main Circuit 7 ... 13 in·lb |
