Official DistributorBy ABB
SKU
MPN
1SFA619550R1076
Weight
0.002 kg

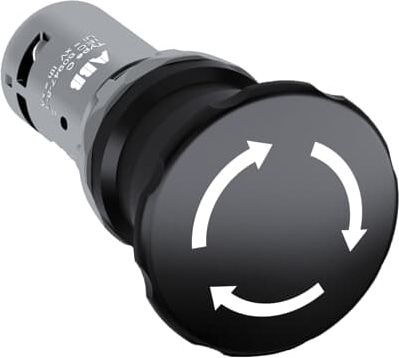

The CE4T-10B-11 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Technical Specifications
Dimensions
| Product Net Width | 0.04 m |
| Product Net Height | 0.04 m |
| Product Net Depth / Length | 0.073 m |
| Product Net Weight | 0.038 kg |
Technical
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Ambient Air Temperature | Storage -40 ... +85 °C |
| Color | Black |
| Actuator Type | Mushroom 40 mm |
| Bezel Material | n/a |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1 |
| Enclosure Type NEMA | Type12 |
| Enclosure Type NEMA | Type13 |
| Enclosure Type NEMA | Type3R |
| Enclosure Type NEMA | Type4 |
| Enclosure Type NEMA | Type4X |
| Pollution degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 1 A |
| Power Loss | Maximum 5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Ferrule 2 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible 1 x 0.5 ...1.5 mm² |
| Connecting Capacity | Flexible 2 x 0.5 ...1.5 mm² |
| Connecting Capacity | Solid 1 x 0.5...1.5 mm² |
| Connecting Capacity | Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 22...14 AWG |
| Connecting Capacity UL/CSA | 2x 22...14 AWG |
Why Proax for ABB CE4T-10B-11?
Proax is an authorized distributor of ABB CE4T-10B-11 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CE4T10B11 |
| Pack Size | 1 |
