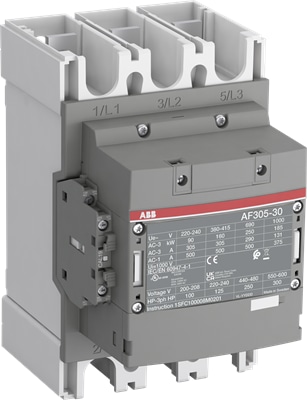

AF305-30-11-11
Official DistributorBy ABB
SKU
ABBAF305301111
MPN
1SFL587002R1111
Weight
3.9 kg
Series AF 3-pole Contactors
The AF305-30-11-11 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 160 kW / 400 V AC (AC-3) or 250 hp / 480 V UL and switching power circuits up to 500 A (AC-1) or 400 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.
AF 3-pole Contactors
ABB's AF series includes a variety of 3-pole contactors designed for controlling 3-phase motors and power circuits. These contactors are categorized into several sub-series based on their current ratings and applications.
Each sub-series features integrated electronic coils that reduce energy consumption by up to 80%, provide surge protection, and allow operation across wide voltage ranges without coil changes. ABB also offers auxiliary contact blocks and accessories to enhance functionality
Technical Specifications
Dimensions
| Product Net Width | 140 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Height | 225 mm |
| Product Net Weight | 3.9 kg |
| Dimension Diagram | 1SFB535001G1060 |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 500 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 375 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 55 °C 325 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 60 °C 325 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 70 °C 260 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 500 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 400 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 325 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 305 A |
| Rated Operational Current AC-3 (Ie) | (440 V) 55 °C 305 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 290 A |
| Rated Operational Current AC-3 (Ie) | (690 V) 55 °C 290 A |
| Rated Operational Current AC-3 (Ie) | (1000 V) 55 °C 131 A |
| Rated Operational Current AC-3 (Ie) | (380 / 400 V) 55 °C 305 A |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 305 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 1-Pole, 40 °C 500 A |
| Rated Operational Current DC-1 (Ie) | (220 V) 2 Poles in Series, 40 °C 500 A |
| Rated Operational Current DC-1 (Ie) | (220 V) 3 Poles in Series, 40 °C 500 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 400 A |
| Rated Operational Current DC-3 (Ie) | (220 V) 3 Poles in Series, 40 °C 400 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 400 A |
| Rated Operational Current DC-5 (Ie) | (220 V) 3 Poles in Series, 40 °C 400 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 160 kW |
| Rated Operational Power AC-3 (Pe) | (440 V) 160 kW |
| Rated Operational Power AC-3 (Pe) | (500 V) 200 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) 250 kW |
| Rated Operational Power AC-3 (Pe) | (1000 V) 185 kW |
| Rated Operational Power AC-3 (Pe) | (380 / 400 V) 160 kW |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 90 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 500 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 500 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1409 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3050 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2440 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 996 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4600 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3800 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-2 / AC-4) 150 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-3) 300 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V |
| Rated Control Circuit Voltage (Uc) | 60 Hz 24 ... 60 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 20 ... 60 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 8.5 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 8.5 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 3 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 3 W |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 475 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 475 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 400 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 400 W |
| Power Loss | at Rated Operating Conditions per Pole 19 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Operate Time | Between Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit | Flexible 2 x 70 ... 185 mm² |
| Connecting Capacity Main Circuit | Rigid Al-Cable 1 x 185 ... 240 mm² |
| Connecting Capacity Main Circuit | Rigid Cu-Cable 1 x 6 ... 300 mm² |
| Connecting Capacity Main Circuit | Rigid Cu-Cable 2 x 70 ... 185 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 2x0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 2 x 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Stranded 2 x 1 .... 4 mm² |
| Connecting Capacity | Flexible 2 x 70 ... 185 mm² |
| Connecting Capacity | Rigid Al-Cable 1 x 185 ... 240 mm² |
| Connecting Capacity | Rigid Cu-Cable 2 x 70 ... 185 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening torque | Cable Lug 9 N·m |
| Tightening torque | Main Circuit 22 ... 43 N·m |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (1000 V AC) 400 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 100 hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 100 hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 125 hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 250 hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 300 hp |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 302 A |
| Full Load Amps Motor Use | (550 ... 600 V AC) Three Phase 289 A |
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions | 1SFC100112M0002 |
| Environmental Product Declaration - EPD | 1SFC100104D0201 |
| Environmental Product Declaration - EPD | 2TFP200030A1001 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.3 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 33 % |
