Official DistributorBy ABB
SKU
MPN
1SVR730740R0200
Weight
0.181 kg

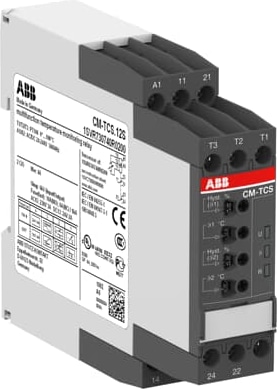

The CM-TCS.12S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.12S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.12S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+100°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.151 kg |
Technical
| Function | Overtemperature monitoring |
| Function | Undertemperature monitoring |
| Function | Over- and undertemperature monitoring |
| Measuring Range | 0 ... +100 °C |
| Sensor Type | PT100 |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Supply Circuit 50 Hz |
| Rated Frequency (f) | Supply Circuit 60 Hz |
| Rated Frequency (f) | Supply Circuit DC |
| Output | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum switching capacity | 24 V |
| Minimum switching capacity | 10 mA |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Output Circuit 1 / Output Circuit 2 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Supply Circuit / Measuring Circuit 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | Supply Circuit / Output Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 300 V |
| Rated Insulation Voltage (Ui) | Output Circuit 1 / Output Circuit 2 300 V |
| Rated Insulation Voltage (Ui) | Supply Circuit / Measuring Circuit 300 V |
| Rated Insulation Voltage (Ui) | Supply Circuit / Output Circuit 300 V |
| Degree of Protection | Housing IP50 |
| Degree of Protection | Terminals IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Short-Circuit Protective Devices | Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm² |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² |
| Connecting Capacity | Flexible 1x 0.5 ... 2.5 mm² |
| Connecting Capacity | Flexible 2x 0.5 ... 1.5 mm² |
| Connecting Capacity | Rigid 1x 0.5 ... 4 mm² |
| Connecting Capacity | Rigid 2x 0.5 ... 2.5 mm² |
| Tightening torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 0.8 x 4 |
| Recommended Screw Driver | 4.5 |
| Recommended Screw Driver | Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.60947-5-1 |
| Standards | IEC/EN 60255-26 |
| Standards | IEC/EN 60255-27 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-3 |
| Standards | IEC/EN 63000 |
| Standards | UL 60947-5-1 |
| Standards | IEC/EN 60947-5-1 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 20-12 AWG |
| Connecting Capacity UL/CSA | Rigid 2x 20-14 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
Why Proax for ABB CM-TCS.12S?
Proax is an authorized distributor of ABB CM-TCS.12S and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CMTCS12S |
| Pack Size | 1 |
