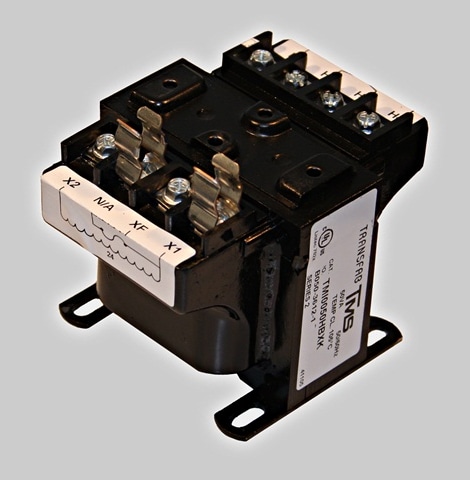

TMI0250PEXK

The TMI series ultra-reliable industrial control transformer is a high-quality encapsulated transformer approved for North American markets. Designed for robust performance and safety, this single-phase transformer operates at a frequency of 50/60 Hz. It features three insulation classes: Class A (105°C), Class B (130°C), and Class H (180°C). With a temperature rise kept below 55°C, 80°C, or 120°C, and noise levels under 40 dB, it ensures efficient and quiet operation. The insulation is rigorously tested at a minimum of 2500 Vrms Hi POT for reliable performance.

Key features include:

• Epoxy encapsulated coils for cooler and safer operation
• Molded terminal barriers
• 10-32 screw terminals with Phil-slot screws
• SEMS screw terminal strips as an integral part of the coil bobbin
• Fusion-welded coil terminations
• Face-on terminal labels with large schematic indicators
• Standard strap brackets
• 20-year warranty for long-term assurance

Custom options available for the TMI series include special voltages, IP-20 cover kits for quick conversion to an IP-20 safety level, primary fusing, secondary fuse clips (where applicable), and a mounting plate on the transformer top.
