KS7-C0S4

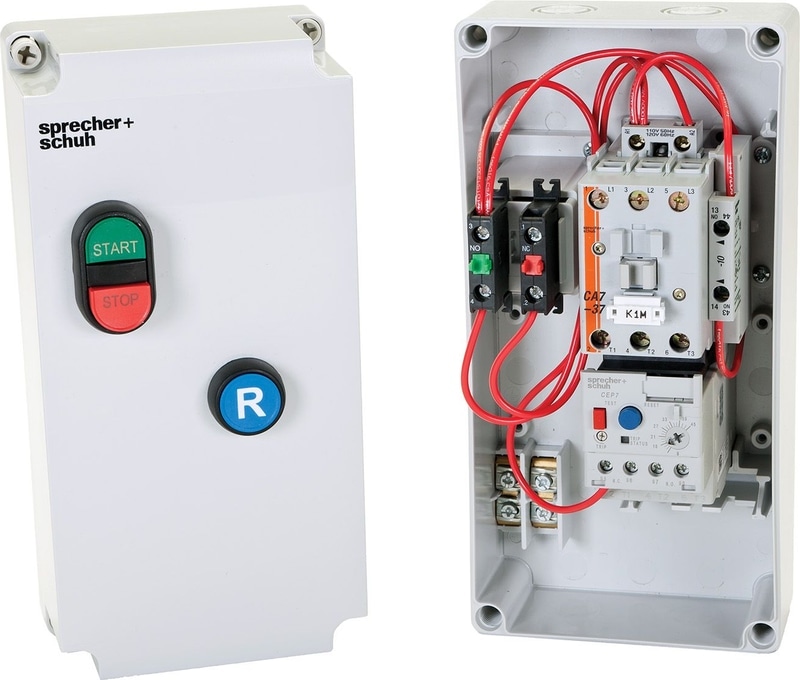

Sprecher + Schuh offers a broad selection of pre-assembled or "build-from-stock" starters housed in a high impact, non-metallic, cUL approved, Type 1, 12, 4/4X enclosure. Built for convenience, space savings and economy, the KWIKstarter line is efficiently designed to use stock CA7/CAU7 contactors and advanced CEP7 solid state or CT7N thermal overloads. Contactor and overload are either prewired and pre-mounted onto the enclosure's built-in DIN-rail or may be ordered as separate components. Ample knockouts and open terminals guarantee quick, no fuss wiring.

KWIKstarters control motors up to 30HP @ 460V (30HP @ 575V) in two enclosure sizes measuring only 208 x 98mm (8.19" x 3.86") or 250 x 125mm (9.84” x 4.92”). This covers over 85% of industrial motor control applications in a very compact package that can be mounted adjacent to or directly on equipment.

KWIKstarters are available in UL sizes 9 to 43 amps, or NEMA labeled sizes 00, 0, 1 and 2. The enclosure and controls are designed for simplicity. A variety of control options and sizes make it a versatile off-the-shelf motor starter for a variety of common applications.

• cUL Approved
• Type 1/12/4/4X
• IP66
• Up to 15 HP @ 600V AC
• AC and DC
• Single or 3-Phase
• Start-Stop, Multi-Function, H-O-A, Reversing, E-Stop
• IEC or NEMA labeled
• 125 x 125 x 250 mm (5 x 5 x 10 in) max.
