D7 Devices
The Economical Solution For High Performance Control, Signaling And Switching Applications
Sprecher + Schuh's rugged D7 pilot devices offer maximum flexibility and a wide choice for all applications. This 22mm line is aesthetically appealing and modularly designed to make assembly and interchangeability easy. The D7 operators are available in two different body styles to meet every application need. Both operators exhibit a low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments.
Push buttons
- Flush & Extended
- Illuminated & non-illuminated
- Mushroom 40mm & 60mm
- Musroom Illuminated in 40mm
- Guardian in illuminated & non-illuminated
- 3-position Push-Pull operators in illuminated & non-illuminated
- 2-position & 3-position Multifunction in illuminated & non-illuminated
Selector Switches
- Illuminated & non-illuminated
- 2-position, 3-position, 4-position
- Key-Operated
Pilot Lights
Selector/Jog Switches
Potentiometers
Pushbutton Stations
Enclosures
Accessories
- Mechanical life: most operators ten million operations, contact blocks five million operations
- Electrical life: 500,000 cycles at 3A to ten million at 0.1A
- Self-cleaning contacts
- IP 66
- Type 4/13 and plastic operators Type 4X
- UL 46E, NEMA A600 and Q600 listed.
- 10 Amp continuous current rating
- Special Contact Blocks & Power Modules
- H-Bridge & Gold Plated Contacts
- Molded Inscription Caps/Diffusers
- Custom Printed Caps/Diffusers
- Touch-Safe —IP 20 protection.
- Long Lasting Integral LED Assemblies

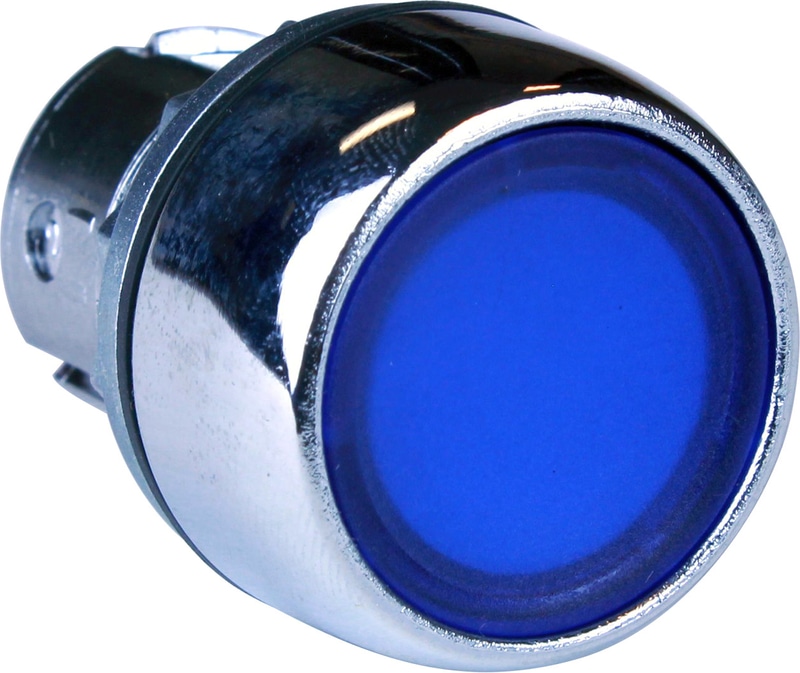

| Bezel | Metal |
| Operator Type | Flush Momentary |
| Color | Blue |
| Contacts | Operator Only |
| Integrity | UL Type 4/13, IP66 |
| Panel Hole Dia. | 22mm |
Why Proax for Sprecher Schuh D7M-LF6?
Proax is the authorized distributor of Sprecher Schuh D7M-LF6. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | D7MLF6 |
| Pack Size | 1 |
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Yellow, Operator Only, UL Type 4/13, IP66
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Clear, Operator Only, UL Type 4/13, IP66
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Red, Operator Only, UL Type 4/13, IP66
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Green, Operator Only, UL Type 4/13, IP66
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, No Lens, Operator Only, UL Type 4/13, IP66
D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 120V AC/DC Incandescent, Metal Latch, 1NO 1NC Standard, UL Type 4/13, IP66- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 24V AC/DC Incandescent, Metal Latch, 2NO Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 24V AC/DC Incandescent, Metal Latch, 1NO Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, No Bulb Incandescent, Metal Latch, 1NO 1NC Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 240V AC Clear LED, Metal Latch, 1NO 1NC Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 240V AC Clear LED, Metal Latch, 1NO Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 120V AC Clear LED, Metal Latch, 1NO 1NC Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 120V AC Clear LED, Metal Latch, 1NO Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 24V AC/DC Clear LED, Metal Latch, 2NO Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 24V AC/DC Clear LED, Metal Latch, 1NO 1NC Standard, UL Type 4/13, IP66
- D7, 22mm, Push Button, Illuminated, Metal, Flush Momentary, Blue, 24V AC/DC Clear LED, Metal Latch, 1NO Standard, UL Type 4/13, IP66
