AW20-N01H-2Z-D
Official DistributorBy SMC

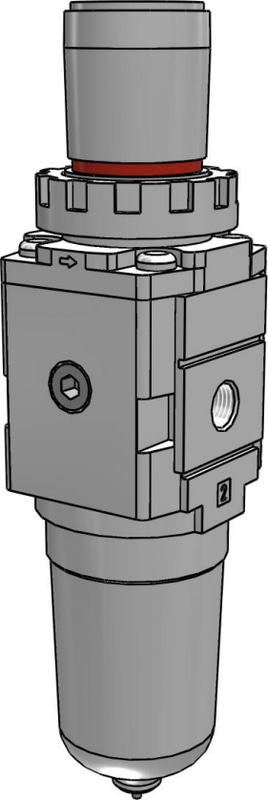

The AW20-N01H-2Z-D is a compact modular filter regulator that combines air filtration and pressure regulation in a single unit to reduce installation space and piping requirements. This configuration features body size 20 with 1/8" NPT ports and a relieving-type regulator with an adjustable pressure range of 0.05 to 0.85 MPa (optional 0.05 to 0.4 MPa setting).
The unit includes panel-mount hardware with set nut, a metal bowl with drain cock, and left-to-right flow direction. It is supplied without backflow function, bracket, auto drain, or digital pressure switch. Product labeling is in psi/°F, and the pressure gauge uses a dual MPa/psi scale.
Documents
Why Proax for SMC AW20-N01H-2Z-D?
Proax is the Elite distributor of SMC AW20-N01H-2Z-D and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | AW20N01H2ZD |
| Pack Size | 1 |
