1088674
Official DistributorSKU
PHX1088674

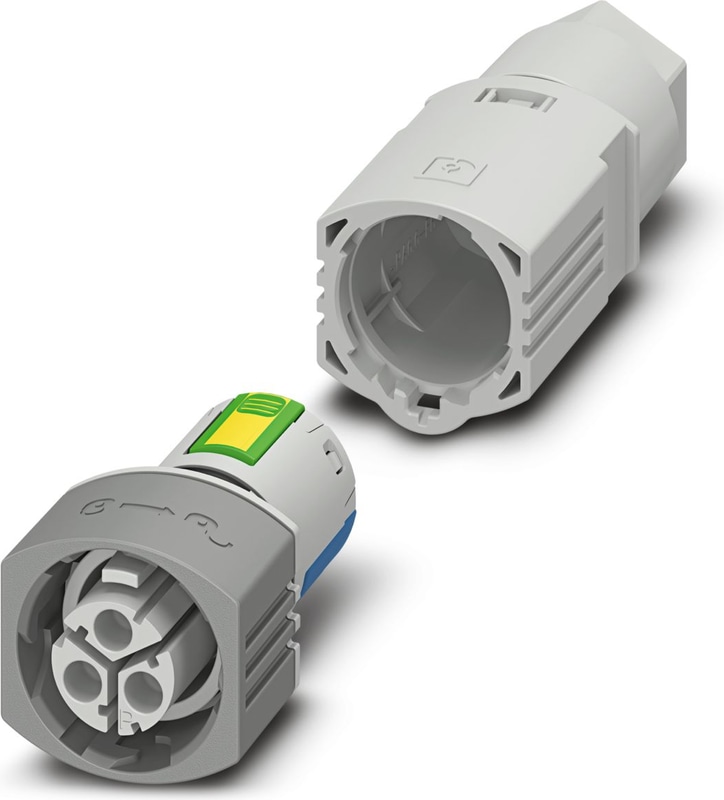

Series IPD Installation Connector
Connector, connection method: Push-lock connection, number of positions: 2+PE, Socket, 0.5 mm ... 2.5 mm, 500 V, 20 A, PA, light gray, coding: P, external cable diameter: 6 mm ... 9 mm and 8 mm ... 13 mm
IPD Installation Connector
Connect cables easily and flexibly with our installation connectors. Depending on the application, choose between simple cable connections, convenient power distribution, or compact device connections. Robust housings and high degrees of protection up to IP69K enable reliable power transmission outdoors and in wet environments.
Why Proax for Phoenix Contact 1088674?
Proax is an authorized distributor of Phoenix Contact 1088674 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
