1588000
Official DistributorBy Rittal

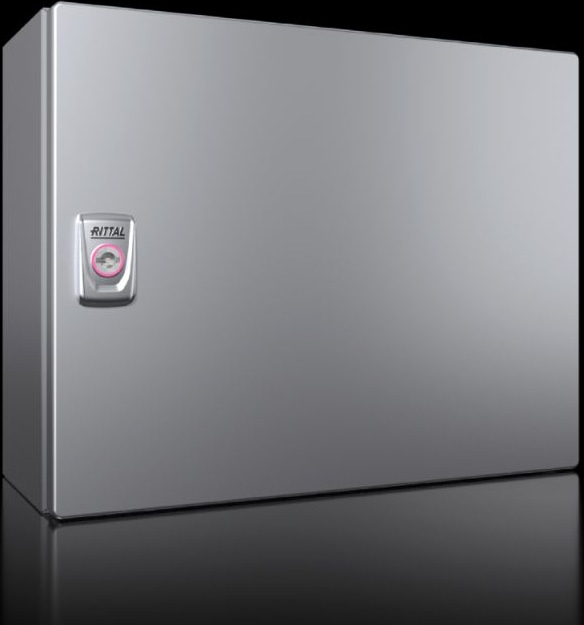

KX E-Box, WHD: 380x300x155 mm, stainless steel 1.4301, with mounting plate, single-door, with cam lock
Supply includes
Mounting panel
Cam lock with 3 mm double-bit insert
Documents
AX Stainless Steel Basic Enclosure
Rittal AX Stainless Steel Enclosure Series offers robust protection and streamlined installation for harsh and hygienic environments. Made from high-quality 1.4301 stainless steel, these enclosures feature IP66 and IK10 ratings for superior resistance to dust, water, and impact. A unique internal mounting system allows accessories to be installed without drilling, saving time and preserving enclosure integrity. With a modern design, corrosion resistance, and global certifications, the AX series is ideal for food, pharma, and demanding industrial applications.
Dimensions
| Width | 380 mm |
| Height | 300 mm |
| Depth | 155 mm |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Surface finish
| Housing and cover | Brushed, grain 180 |
| Mounting panel | Zinc-plated |
| Article no. | KX 1588000 |
| Protection category IP to EN 60 529 | IP 65 |
| Type rating according to UL 50E | Type 1 |
| Dimensions of mounting plate (W x H) | 365 mm x 275 mm |
| Material thickness - enclosure | 1.25 mm |
| Material thickness - Door | 1.25 mm |
| Lock | No. of locks: 1 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Net weight | 6.4 kg |
| Gross Weight | 6.5 kg |
| Customs tariff number | 84879059 |
| EAN | 4028177919143 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1588000?
Proax is an authorized distributor of Rittal 1588000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a stainless steel body and door, and a zinc plated mounting panel.
