1006000
Official DistributorBy Rittal

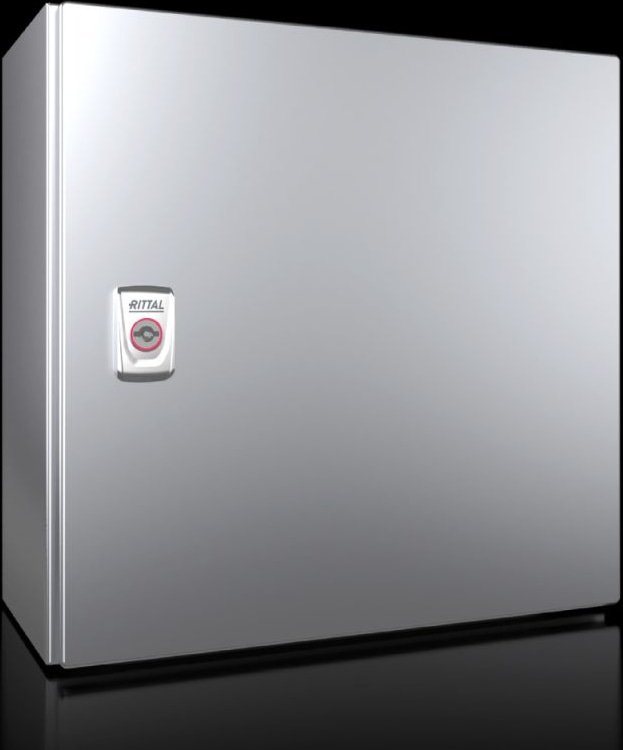

AX wall-mounted enclosure, WHD: 380x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock
Supply includes
Housing with door(s), swing angle 130°
Mounting panel
Lock: 3 mm double-bit
Documents
AX Stainless Steel Basic Enclosure
Rittal AX Stainless Steel Enclosure Series offers robust protection and streamlined installation for harsh and hygienic environments. Made from high-quality 1.4301 stainless steel, these enclosures feature IP66 and IK10 ratings for superior resistance to dust, water, and impact. A unique internal mounting system allows accessories to be installed without drilling, saving time and preserving enclosure integrity. With a modern design, corrosion resistance, and global certifications, the AX series is ideal for food, pharma, and demanding industrial applications.
Dimensions
| Width | 380 mm |
| Height | 380 mm |
| Depth | 210 mm |
Lock
| Lock version | Cam |
| No. of locks | 1 |
| Lock Insert | 3 mm double-bit |
| Material lock | Die-cast zinc |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting panel | Zinc-plated |
| Protection category NEMA | NEMA 1 |
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E | Type 1 |
| IK code | IK10 |
| Material thickness - Door | 1.5 mm |
| Material thickness - enclosure | 1.25 mm |
| Material thickness – mounting plate | 2 mm |
| Dimensions of mounting plate (W x H) | 330 mm x 355 mm |
| Number of doors | 1 |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Net weight | 9 kg |
| Gross Weight | 9.115 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177814950 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1006000?
Proax is an authorized distributor of Rittal 1006000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a stainless steel body and door, and a zinc plated mounting panel.
