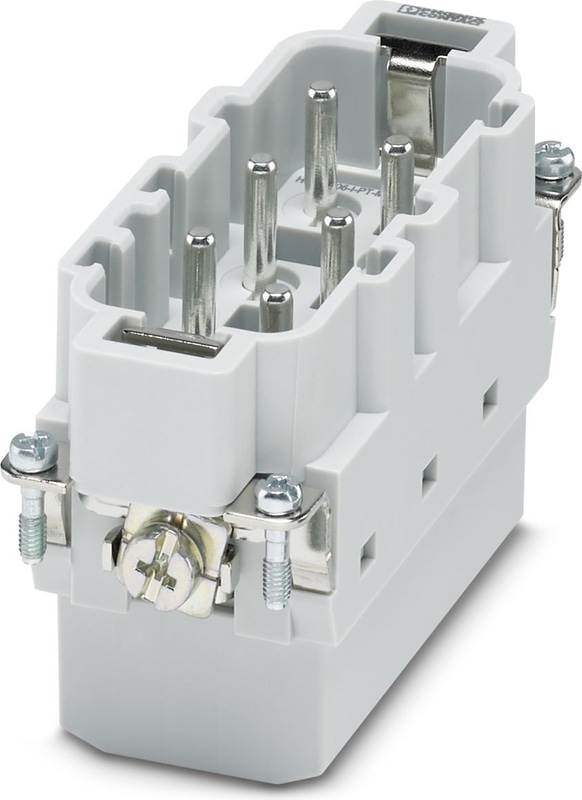

HC-HS-06-I-PT-M - Contact insert
Contact insert, number of positions: 6+PE, size: B16, power contacts: 6, control contacts: 0, number of connections per position: 1, Pin, Push-in connection, 400 V, 35 A, 1.5 mm2 ... 6 mm2, application: Power
- Easy installation without tools, even when mounted, with push-in connection technology
- Shortest installation time compared to other connection technologies
- Quick and effortless wiring, in particular when space is tight
- Automatic cabling with robots possible
- Safe wiring and operation with color-coded actuators
- Shock and vibration-resistant in accordance with DIN EN 61373
- Cost-effective and fast coding with plastic profiles
Documents
Technical Specifications
Notes
| General | for flexible conductors with or without ferrules |
| General | Connectors may be operated only when there is no load/voltage. |
Mounting
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
Product properties
| Series | HC-HS |
| Application | Power |
| Type | B16 |
| Number of Positions | 6 |
| Connection profile | 6+PE |
| Contact numbering | 1 - 6 |
| Number of connections per position | 1 |
| No. of power contacts | 6 |
| No. of control contacts | 0 |
| Contact material type | turned |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 34 mm |
| Height | 32.5 mm |
| Length | 84.5 mm |
| Drill hole distance, horizontal | 77.5 mm |
Mechanical characteristics
| Contact diameter | 3.5 mm |
Connection technology
| Connection technology | Push-in connection |
| Number of connections per position | 1 |
| Connection in acc. with standard | IEC / EN |
Conductor connection
| Conductor Cross Section | 1.5 mm² ... 6 mm² (power contacts) |
| Connection cross section AWG | 16 ... 10 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Stripping length of the individual wire | 12 mm |
Electrical properties
| Rated voltage (III/3) | 400 V (Conductor-PE) |
| Rated voltage (III/3) | 690 V (Conductor-Conductor) |
| Rated voltage for power contacts | 400/690 V |
| Rated surge voltage | 6 kV (power contacts) |
| Rated current | 35 A (power contacts) |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | Ag/Sn (tarnish protection) |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Testing
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
