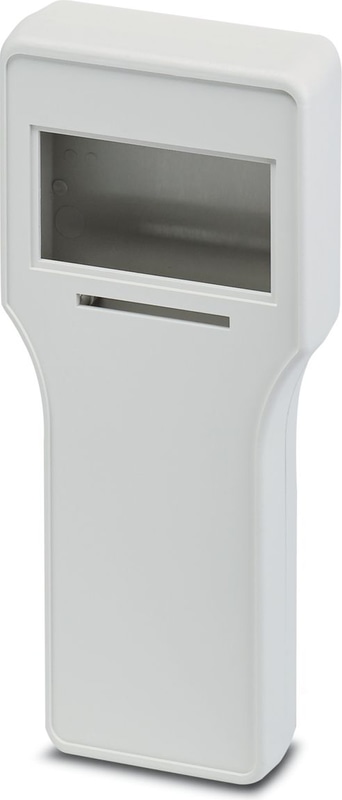

HCS-T MINI 1W C C C 7035 - Electronics housing
Handheld housing, T-Mini, light gray, consisting of two half shells with screws, front 1.1 mm recessed, with window and keypad slot
- Suitable for handheld devices
- Easy integration of LCD displays and membrane keypads
- Ergonomic straight or staggered housing design
- Fast mounting, thanks to the modular design
Technical Specifications
Product properties
| Housing type | Handheld housing |
| Housing series | HCS |
| Type | stepped |
| Ventilation openings present | no |
| Battery compartment | no |
Display
| Diagonal | 2.8 in. / 7 cm (Window for display) |
Dimensions
| Width | 85 mm |
| Height | 182.5 mm |
| Depth | 30 mm |
| Dimensions | 66 mm x 36.6 mm x 1.2 mm (Holder for cover lens) |
| Dimensions | 62 mm x 32.6 mm (Window for display) |
| Dimensions | 41 mm x 3.5 mm (Opening for membrane cable) |
| Dimensions | 55.25 mm x 173.4 mm x 1.1 mm (recessed area on the front, bottom position for membrane keypad) |
| Dimensions | 78.25 mm x 173.4 mm x 1.1 mm (recessed area on the front, top position for membrane keypad) |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 400 ≤ CTI < 600 |
| Insulating material | II |
| Housing Material | ABS |
| Surface characteristics | untreated |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 80 °C |
| Test duration | 1 h |
| Force | 20 |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP54 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Number of PCB holders | 2 |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Packaging specifications
| Type of packaging | Box packaging |
