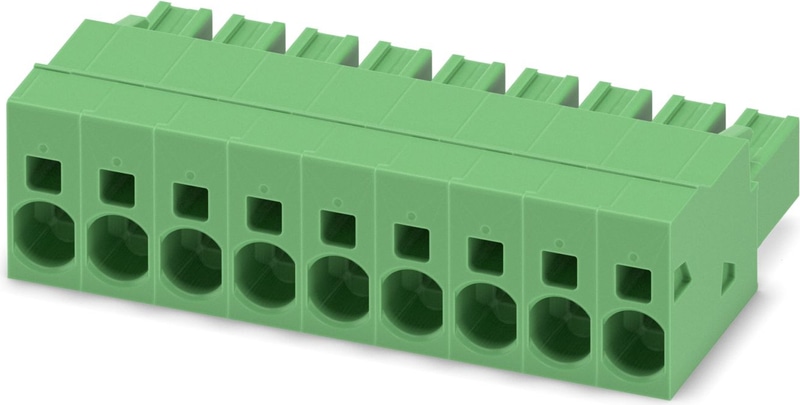

Phoenix Contact 1996087

1996087

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1996087
MPN
SPC 5/ 9-ST-7,62
Weight
0.044 kg
Series SPC

SPC 5/ 9-ST-7,62 - PCB connector

PCB connector, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Socket, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: SPC 5/..-ST, pitch: 7.62 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON PC 5, locking: without, mounting: without, type of packaging: packed in cardboard

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Clamping space opened by means of fixed screwdriver enables convenient conductor connection
  • Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
  • Optimized for tight installation situations: operation and conductor connection from one direction
  • 600 V UL approval in the smallest of dimensions
Technical Specifications

Product properties

Product familySPC 5/..-ST
Product lineCOMBICON Connectors L
TypeStandard
Number of Positions9
Pitch7.62 mm
Number of Connections9
Number of rows1
Number of potentials9
Mounting flangewithout

Electrical properties

Nominal current IN41 A
Nominal voltage UN1000 V
Degree of pollution3
Contact resistance0.8 mΩ
Rated voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV

Connection technology

TypeStandard
Connector systemCOMBICON PC 5
Nominal cross section6 mm²
Contact connection typeSocket

Interlock

Locking Typewithout
Mounting flangewithout

Conductor connection

Connection MethodPush-in spring connection
Connection direction of the conductor to plug-in direction0 °
Conductor/PCB connection direction0 °
Conductor cross section rigid0.2 mm² ... 10 mm²
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section AWG24 ... 8
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 6 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.25 mm² ... 1.5 mm²
Cylindrical gauge a x b / diameter4.3 mm x 4.0 mm / 4.0 mm
Stripping length15 mm

Specifications for ferrules without insulating collar

recommended crimping tool1212034 CRIMPFOX 6
recommended crimping tool1213144 CRIMPFOX CENTRUS 6S
recommended crimping tool1213146 CRIMPFOX CENTRUS 6H
ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.5 mm²; Length: 10 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.75 mm²; Length: 10 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 1 mm²; Length: 10 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 1.5 mm²; Length: 12 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 2.5 mm²; Length: 12 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 4 mm²; Length: 12 mm ... 15 mm
ferrules without insulating collar, according to DIN 46228‑1Cross section: 6 mm²; Length: 12 mm ... 15 mm

Specifications for ferrules with insulating collar

recommended crimping tool1212034 CRIMPFOX 6
recommended crimping tool1213144 CRIMPFOX CENTRUS 6S
recommended crimping tool1213146 CRIMPFOX CENTRUS 6H
ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.5 mm²; Length: 10 mm ... 15 mm
ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.75 mm²; Length: 12 mm ... 15 mm
ferrules with insulating collar, according to DIN 46228‑4Cross section: 1 mm²; Length: 12 mm ... 15 mm
ferrules with insulating collar, according to DIN 46228‑4Cross section: 1.5 mm²; Length: 12 mm ... 15 mm
ferrules with insulating collar, according to DIN 46228‑4Cross section: 2.5 mm²; Length: 12 mm ... 15 mm
ferrules with insulating collar, according to DIN 46228‑4Cross section: 4 mm²; Length: 12 mm ... 15 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions

Pitch7.62 mm
Width [w]68.58 mm
Height [h]19.8 mm
Length [l]38.5 mm

Notes

Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Conductor connection

SpecificationIEC 60999-1:1999-11
ResultTest passed

Test for conductor damage and slackening

SpecificationIEC 60999-1:1999-11
ResultTest passed

Repeated connection and disconnection

SpecificationIEC 60999-1:1999-11
ResultTest passed

Pull-out test

SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / flexible / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value10 mm² / solid / > 90 N
Conductor cross section/conductor type/tractive force setpoint/actual value6 mm² / flexible / > 80 N

Insertion and withdrawal forces

ResultTest passed
No. of cycles50
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N

Resistance of inscriptions

SpecificationIEC 60068-2-70:1995-12
ResultTest passed

Polarization and coding

SpecificationIEC 60512-13-5:2006-02
ResultTest passed

Visual inspection

SpecificationIEC 60512-1-1:2002-02
ResultTest passed

Dimension check

SpecificationIEC 60512-1-2:2002-02
ResultTest passed

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h

Durability test

SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level7.3 kV
Contact resistance R10.8 mΩ
Contact resistance R20.8 mΩ
Insertion/withdrawal cycles50
Insulation resistance, neighboring positions> 5 MΩ

Climatic test

SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage3.31 kV

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C

Thermal test | Test group C

SpecificationIEC 60512-5-1:2002-02
Tested number of positions12

Insulation resistance

SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ

Temperature cycles

SpecificationIEC 60999-1:1999-11
ResultTest passed

Air clearances and creepage distances |

SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
minimum clearance value - non-homogenous field (III/2)8 mm
minimum creepage distance (III/2)8 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm

Packaging specifications

Type of packagingpacked in cardboard

Why Proax for Phoenix Contact 1996087?

Proax is an authorized distributor of Phoenix Contact 1996087 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size50
