1334209
Official DistributorSKU
PHX1334209
MPN
FOC-TRX-SFP-1G-SX-ET
Weight
0.029 kg
This product is Not Cancellable/Not Returnable

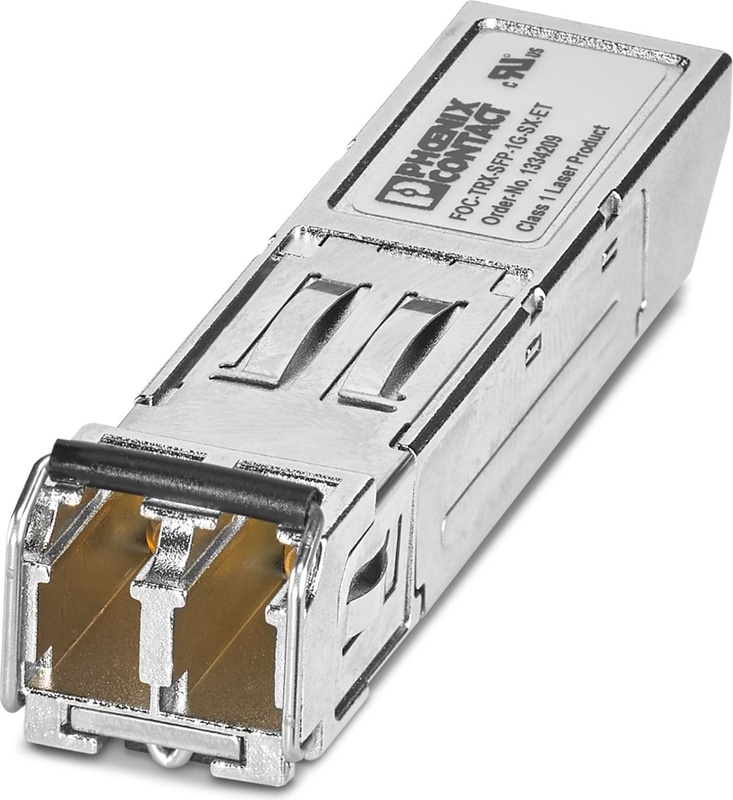

FOC-TRX-SFP-1G-SX-ET - Transceiver
Multimode SFP transceiver for transmission up to 1 Gbps over 500 m at wavelengths of 850 nm in the extended temperature range
- Maximum flexibility, thanks to the non-proprietary multi-source agreement (MSA)
- Superior system availability, thanks to Plug and Play during operation
- Future-proof, thanks to RoHS 2 conformity
- Maximum data transmission quality
- Interference-free data transmission, even for EMC-sensitive applications
- Reliable data transmission in the extended temperature range
Technical Specifications
Dimensions
| Width | 13.7 mm |
| Height | 13 mm |
| Length | 57.3 mm |
Material specifications
| Housing Material | Metal |
Interfaces
| Transmission Speed | 1 Gbps |
| Wavelength | 850 nm |
Product properties
| Type | SFP Modul |
| Connection profile | LC-Duplex |
| Type of packaging | Box packaging |
Electrical properties
| Transmission Speed | 1 Gbps |
Connection data
| Connection Method | To insert in SFP slot |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
Standards and Regulations
| Laser class | 1 |
Why Proax for Phoenix Contact 1334209?
Proax is an authorized distributor of Phoenix Contact 1334209 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
