CHARX T2HI-ELOCK12V
Weight
0.175 kg
Series CHARX-T
CHARX T2HI-ELOCK12V - Locking

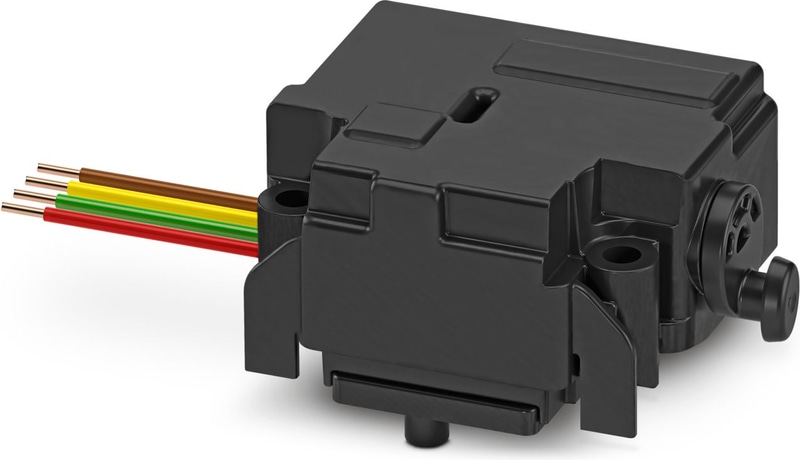

CHARX connect universal, Locking, Accessories, for mounting on vehicle charging inlets, Type 2, IEC 61851-1, Single wires, length: 1 m, locking actuator: 12 V, 4-pos.
- Integrated interlock during charging
- Manual emergency release of the locking actuator
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Uniform, space-saving installation space
Technical Specifications
Product properties
| Product family | CHARX connect universal |
| Application | for mounting on vehicle charging inlets |
| Type | Accessories |
| Charging standard | Type 2 |
| Charging mode | Mode 2, 3, 4 |
Locking actuator
| Operating Voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | any |
| Operating Voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | any |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 12 V |
| Typical motor current for locking | 0.25 A |
| Reverse current of the motor | max. 1.5 A |
| Max. dwell time with reverse current | 1 s |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient Temperature (Operation) | -40 °C ... 90 °C |
| Cable Length | 1.5 mm |
Cable/line
| Cable Length | 1 m |
| Cable Type | Single wires |
| Cable structure | 4 x 0.5 mm² |
| Single wire, material | PVC |
| Single wire, color | BU/RD |
| Single wire, color | BU/GN |
| Single wire, color | BU/YE |
| Single wire, color | BU/BN |
| External Cable Diameter | 1.60 mm ±0.20 mm |
| Cable resistance | ≤ 37.1 Ω/m |
Standards
| Standards/regulations | IEC 61851-1 |
