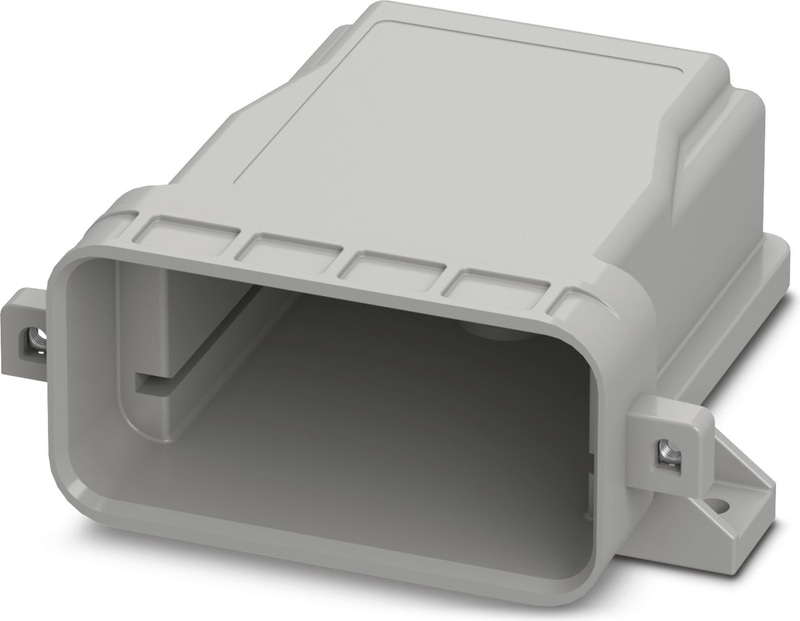

ECS-B-64X80-S-UV-V GY - Electronics housing
Screw locking vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate. Color: Grey (7042), Width: 97 mm, Height: 86 mm, Depth: 45 mm
- Ultra-compact housing design for a wide range of applications
- Housing design supports the installation of a range of PCB thicknesses for high application diversity
- Integrated pressure compensation membrane for fluctuating ambient pressures
- Optional accessories for wall and mast mounting
- Proven PCB connection technology
- Integrated tamper protection
- Effective protection of electronics against thermal and mechanical influences
- Suitable for outdoor/indoor applications
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Outdoor housing |
| Housing series | ECS |
| Product family | ECS..64X..S.. |
| Type | integrated pressure compensation membrane |
| Ventilation | integrated pressure compensation membrane |
Dimensions
| Width | 98 mm |
| Height | 97 mm |
| Depth | 45 mm |
PCB design
| PCB thickness | 1.57 mm ... 2.36 mm |
Material specifications
| Color (Housing) | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PC (polycarbonate) |
| Surface characteristics | untreated |
| Impact strength | IK08 |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 2000 - 10 Hz |
| Sweep speed | 1 octave/min |
| Acceleration | 15g (61.6 Hz ... 2000 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 50g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
Test for substances that would hinder coating with paint or varnish
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Result, degree of protection, IP code | IP66/IP68 (2 m/24 h) |
Ambient conditions
| Max. NEMA code to attain | 6 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
PCB data
| Number of PCB holders | 1 |
| Thickness of the PCB | 1.57 mm ... 2.36 mm |
Mounting
| Mounting Type | Wall or panel mount. Pole mount with accessory. |
