1090639
Official DistributorSKU
PHX1090639
MPN
A 50 -32
Weight
0.003 kg
Series A

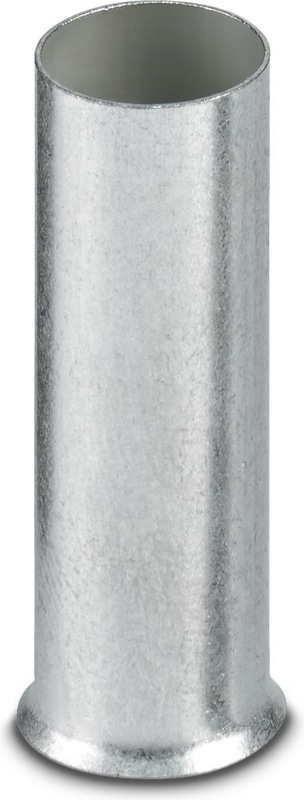

A 50 -32 - Ferrule
Ferrule, color: silver
Technical Specifications
Notes
| General | These ferrules are not included in DIN 46228-1: 1992-08 |
Product properties
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
Conductor connection
| Conductor cross section flexible max. | 50 mm² |
| Conductor cross section AWG max. | 1/0 |
| Stripping length | 32 mm |
Dimensions
| Maximum stripping length | 32 mm |
| Ferrule diameter | 10.3 mm |
| Sleeve wall thickness | 0.3 mm |
| Inner dimensions of the insulating collar | 13 mm |
Material specifications
| Color | silver |
| Material | CU-DHP |
| Coating | tin-plated (galvanic) |
Ambient conditions
| Permanent temperature | 105 °C |
| Short-term temperature | 120 °C |
Why Proax for Phoenix Contact 1090639?
Proax is an authorized distributor of Phoenix Contact 1090639 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
