1088672
Official DistributorSKU
PHX1088672
MPN
IPD PL 3P2,5 M GY
Weight
0.053 kg
Series IPD Installation Connector

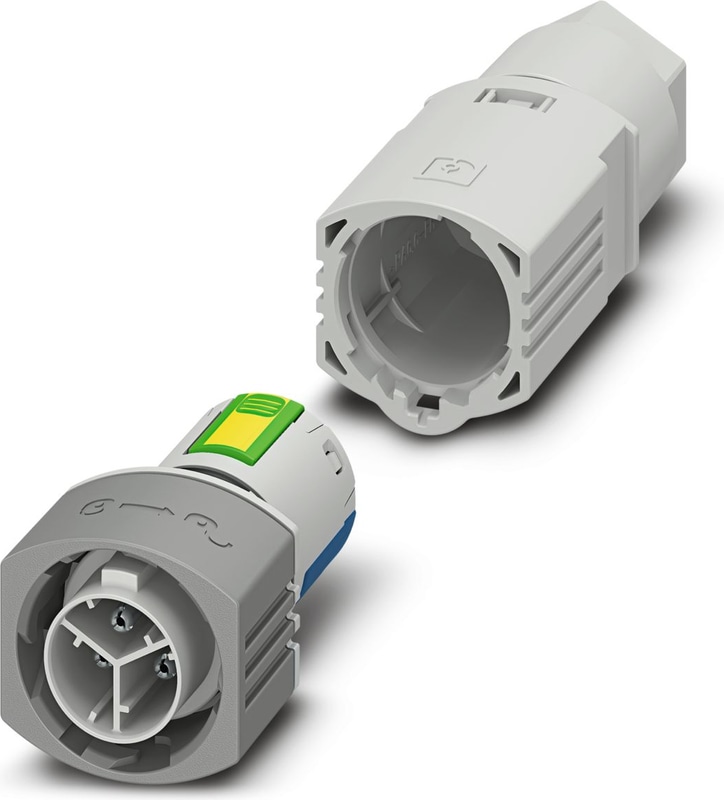

Connector, connection method: Push-lock connection, number of positions: 2+PE, Pin, 0.5 mm ... 2.5 mm, 500 V, 20 A, PA, light gray, coding: P, external cable diameter: 6 mm ... 9 mm and 8 mm ... 13 mm
IPD Installation Connector
Connect cables easily and flexibly with our installation connectors. Depending on the application, choose between simple cable connections, convenient power distribution, or compact device connections. Robust housings and high degrees of protection up to IP69K enable reliable power transmission outdoors and in wet environments.
Technical Specifications
Notes
| General | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
Product properties
| Product family | IPD |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| Position marking | L, N, PE |
| Number of connections per position | 1 |
| Coding | P |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 20 A |
| Rated voltage (III/3) | 500 V |
| Nominal voltage UN | 500 V AC |
| Nominal voltage UN | 500 V DC |
| Nominal current IN | 20 A |
Connection technology
| Connection method On the field side | Push-lock connection |
Conductor connection
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
Dimensions
| Width | 26.5 mm |
| Height | 26.9 mm |
| Length | 85.9 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | Ni/Ag/Sn |
| Flammability rating according to UL 94 | V0 |
Cable/line
| External Cable Diameter | 6 mm ... 9 mm |
| External Cable Diameter | 8 mm ... 13 mm |
| Position marking | L, N, PE |
Mechanical data
| Insertion/withdrawal cycles | 50 (IP66/IP68/IP69K) |
| Insertion/withdrawal cycles | 100 (IP66) |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -30 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -30 °C ... 100 °C |
| Resistance to UV radiation | yes |
