Official DistributorBy ABB
SKU
MPN
1SFA611280R4011
Weight
0.064 kg

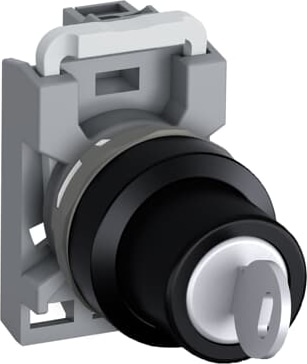

The M2SSK1-401-10 Selector Switch is: Maintained/Momentary - Key - Black/Key - Non-illuminated - Black Plastic - 1NO - 1 NO - 690 V
This Selector Switch is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
Technical Specifications
Dimensions
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.063 m |
| Product Net Weight | 0.064 kg |
Technical
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Ambient Air Temperature | Storage -40 ... +85 °C |
| Color | Black/Key |
| Actuator Type | Key |
| Bezel Material | Black Plastic |
| Illumination | Non-illuminated |
| Function | Maintained |
| Maintained Positions | B, C |
| Key Removal Positions | Both Positions |
| Key Code | Ronis 455, Key code 71 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1 |
| Enclosure Type NEMA | Type12 |
| Enclosure Type NEMA | Type3R |
| Enclosure Type NEMA | Type4 |
| Enclosure Type NEMA | Type4X |
| Pollution degree | 3 |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 690 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 5 A |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 6 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 8 A |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 6 A |
| Power Loss | Maximum 2.5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Ferrule 2 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible 1 x 0.75 ... 2.5 mm² |
| Connecting Capacity | Flexible 2 x 0.75 ... 2.5 mm² |
| Connecting Capacity | Solid 1 x 0.75...2.5 mm² |
| Connecting Capacity | Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| Connecting Capacity UL/CSA | 2x 18...14 AWG |
Why Proax for ABB M2SSK1-401-10?
Proax is an authorized distributor of ABB M2SSK1-401-10 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | M2SSK140110 |
| Pack Size | 1 |
